JDB3910AWW 04 – RINSE AID & SOAP DISPENSER

JDB3910AWW 04 – RINSE AID & SOAP DISPENSER

Written by

in

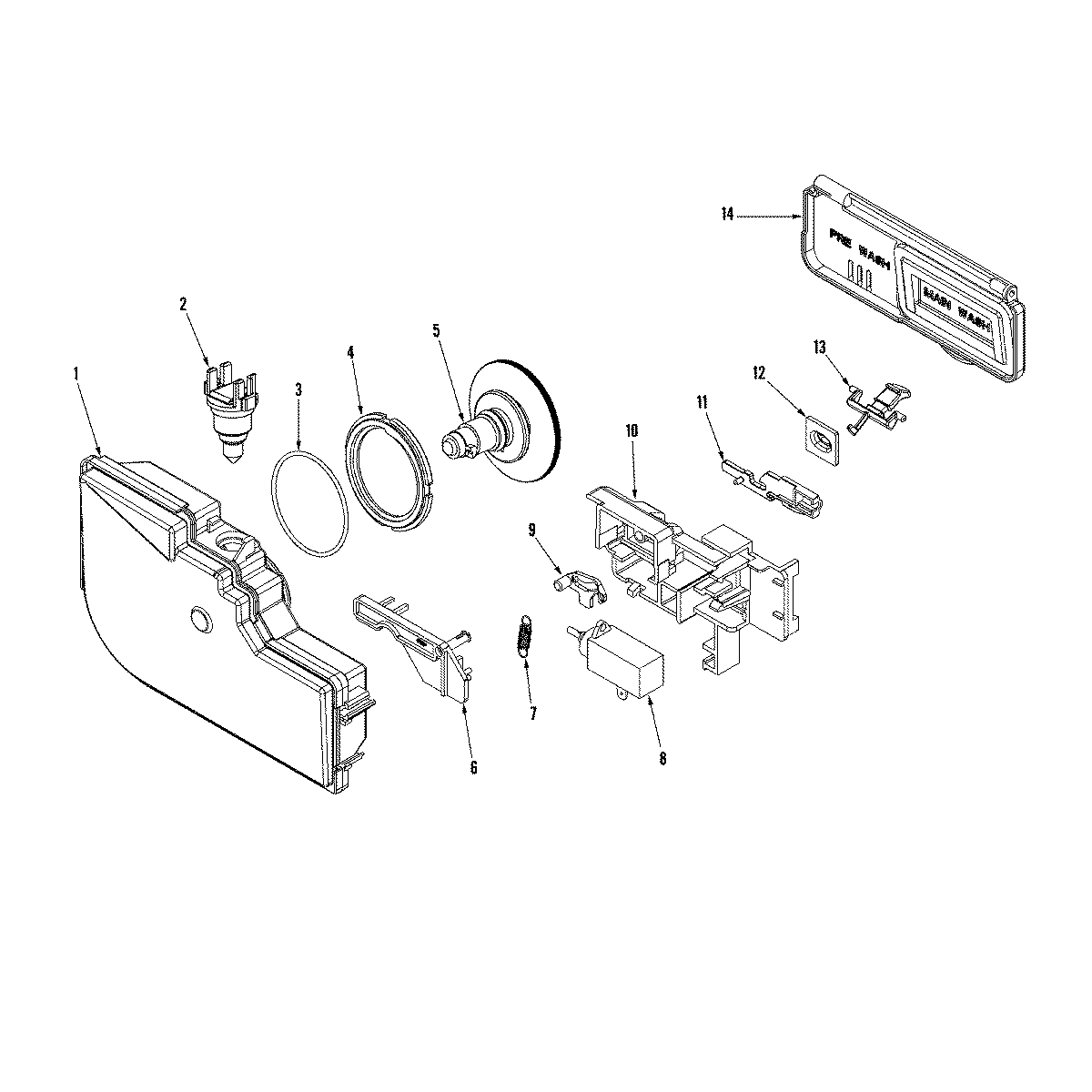

JDB3910AWW 04 – RINSE AID & SOAP DISPENSER

Products

PositionProduct
1MAY 903656
2MAY 903124
3MAY Y913061
4MAY Y913060
5WP6-903123 Whirlpool Dishwasher Rinse Knob
6MAY 99001289
7WPW10116816 Whirlpool Dishwasher Spring
8WP902899 Whirlpool Dishwasher Wax Motor
9MAY 99001287
10SCREW, No.8X1/2 HEX WASHER HEAD
10WP99001288 Whirlpool Dishwasher Retainer
11MAY 99001290
12WP99001553 Whirlpool Dishwasher Grommet
13WP99001291 Whirlpool Dishwasher Latch
14MAY 903108
14MAY Y912547
14WPY912679 Whirlpool Dishwasher Hinge Pin
14WP6-912678 Whirlpool Hinge Pin
