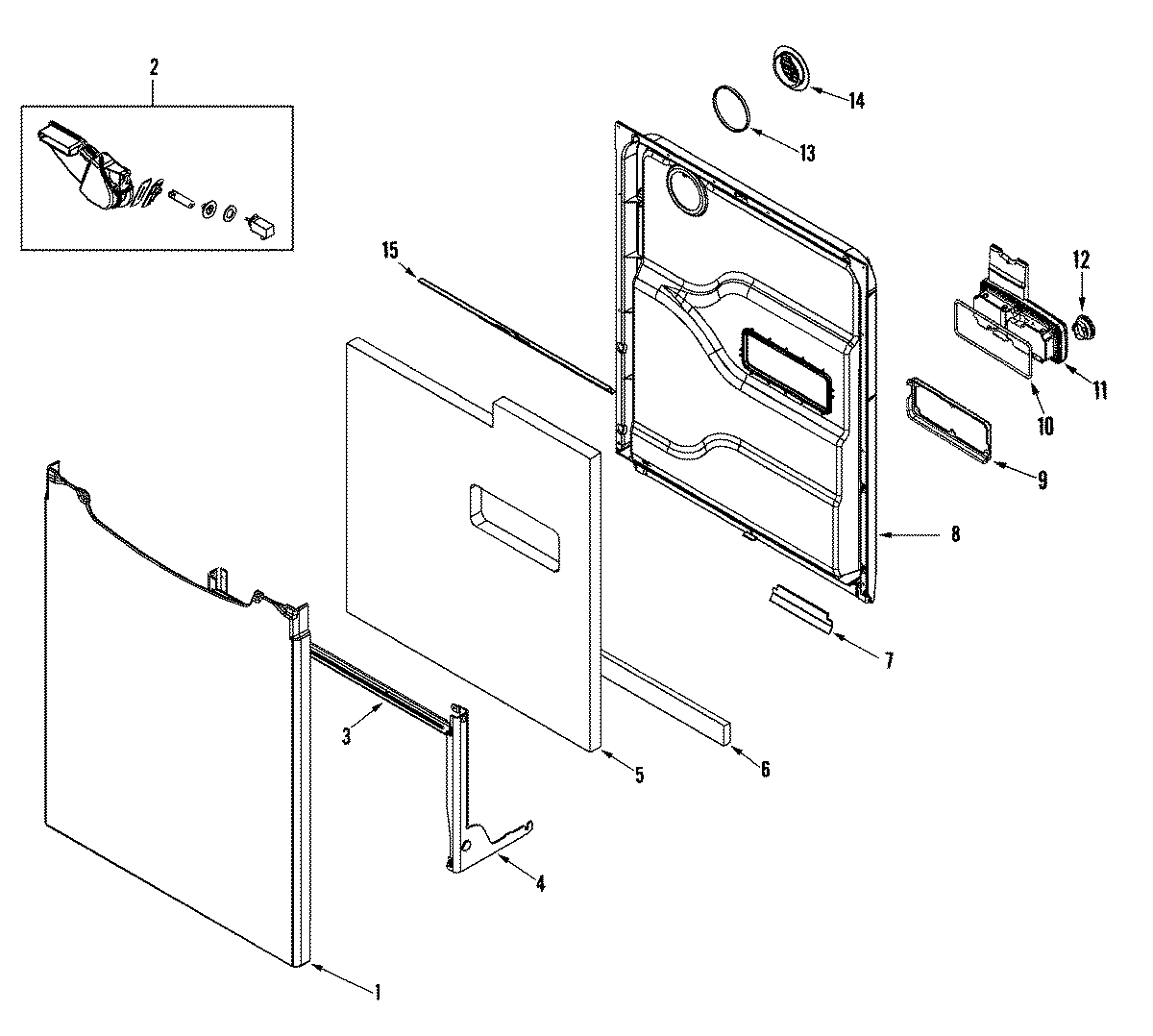

JDB4000AWB 02 – DOOR

Products

Position	Product
1	PANEL, DECO (W/DAMPER-BLK)
2	VENT HOUSING ASSEMBLY
3	MAY 99002604
4	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	MAY 99002929
4	MAY 99001075
4	WPW10118637 Whirlpool Dishwasher Bracket
5	INSULATION, DOOR
6	WPW10117748 Whirlpool Dishwasher Insulation Pad
7	WP99002589 Whirlpool Dishwasher Door Seal
8	MAY 99003541
8	MAY 99003482
8	Foam Strip(Long)
8	DOOR LINER, SECONDARY
8	MAY 99002776
8	DOOR, INNER (W/DAMPER)
9	SCREW, No.8X1/2 HEX WASHER HEAD
9	6-918900 Whirlpool Dishwasher Bracket
10	MAY 99002270
11	MAY 99002611
12	WP99002614 Whirlpool Dishwasher Rinse Knob
13	MAY 99002186
14	99002590 Whirlpool Dishwasher Door Vent Bezel
15	MAY 99002586
15	WPY912620 Whirlpool Dishwasher Screw
