JDB4000AWB 03 – PUMP & MOTOR

JDB4000AWB 03 – PUMP & MOTOR

Written by

in

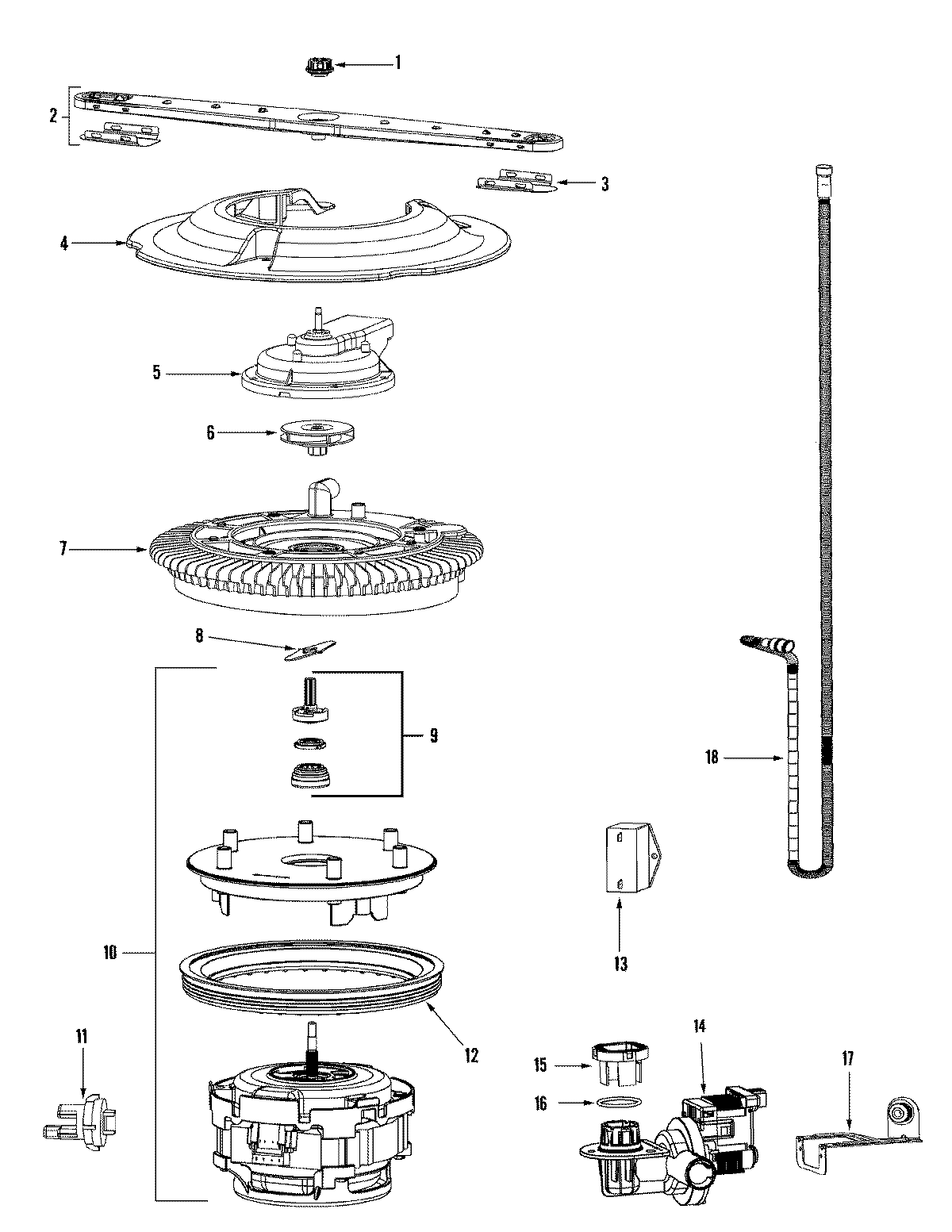

JDB4000AWB 03 – PUMP & MOTOR

Products

PositionProduct
1WP99002654 Whirlpool Nut
2WP6-917642 Whirlpool Dishwasher Wash Arm
3MAY 99002653
4WPW10166788 Whirlpool Dishwasher Filter Frame
4MAY 99002666
5SCREW, DISCHARGE HOUSING
5DISCHARGE HOUSING ASSY (UPR)
6MAY 99002660
6WP99002659 Whirlpool Impeller
7WPW10192799 Whirlpool Dishwasher Accumulator
7SCREW, STAINLESS PAN HEAD
8WP99002658 Whirlpool Dishwasher Chopper
8MAY 99003427
9MAY 99002760
9MAY 99002981
10MAY 99002759
10MAY 99002980
10WASH MOTOR ASSY SEAL NOT INCL
11WPW10120019 Whirlpool Dishwasher Sensor
1199002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11SCREW, No.8X1/2 HEX WASHER HEAD
11MAY 99003613
12GASKET, PUMP
13SCREW 10-32X.400 (T-20 HEAD)
13CAPACITOR, MOTOR
14MAY 99002750
14MAY 99002815
14MAY W10200518
15MAY 99003058
16MAY 99002857
17MAY 99002752
17MAY 99002657
18WP99002652 Whirlpool Drain Hose
18WP99002656 Whirlpool Dishwasher Drain Clamp
