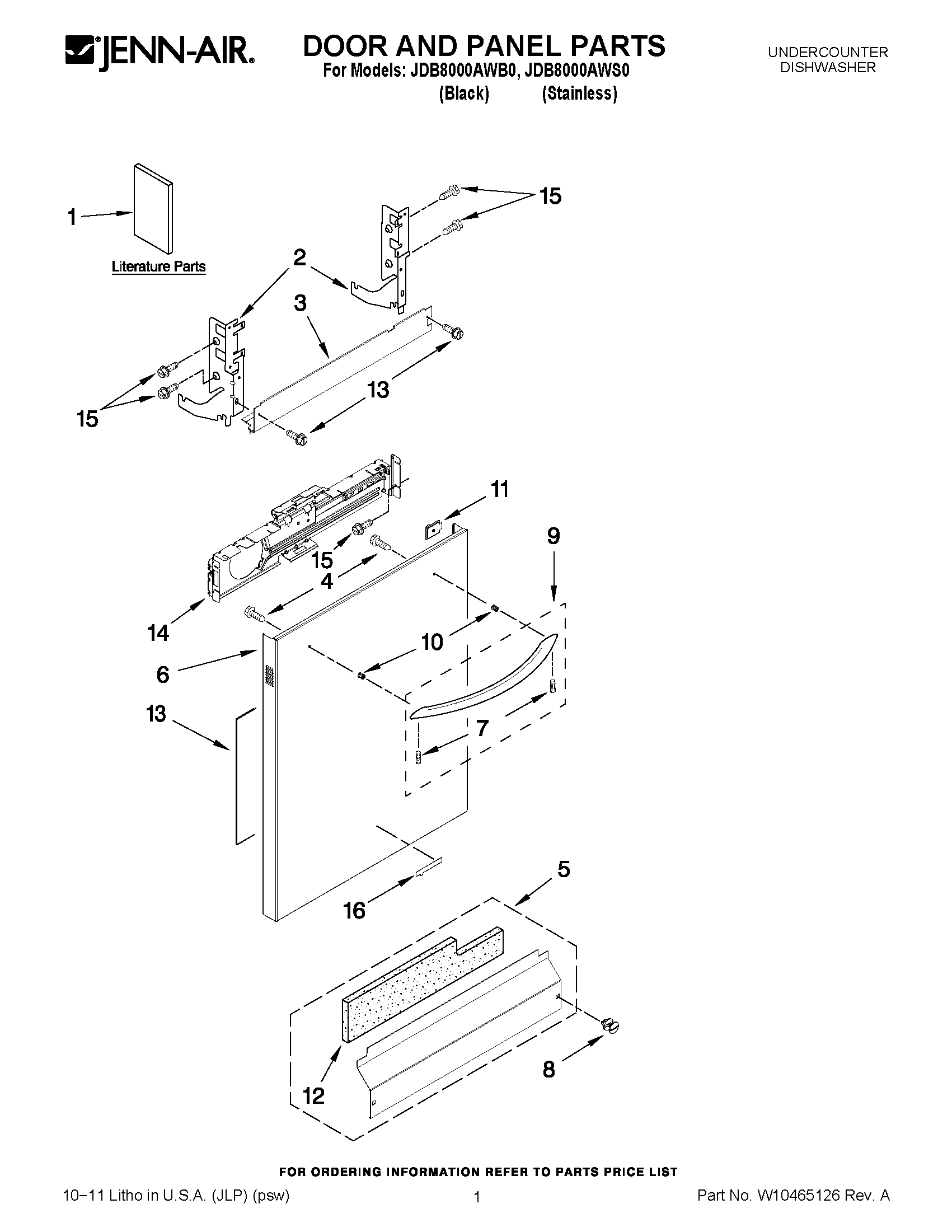

JDB8000AWB0 01 – DOOR AND PANEL PARTS

JDB8000AWB0 01 – DOOR AND PANEL PARTS

Written by

in

JDB8000AWB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10460138
1MAY W10321875
1MAY W10418360
1MAY W10321874
1MAY W10418362
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5MAY W10369024
6PANEL, FRONT (STAINLESS)
6PANEL, FRONT (BLACK)
7MAY W10276608
8SCREW (BLACK)
9HANDLE ASSEMBLY (STAINLESS)
9HANDLE ASSEMBLY (BLACK)
10STUD, MOUNTING
11LIGHT, PIPE
12INSULATION, ACCESS PANEL
13INSULATION, FRONT PANEL
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (BLACK)
16ASSEMBLY, BADGE (STAINLESS)
