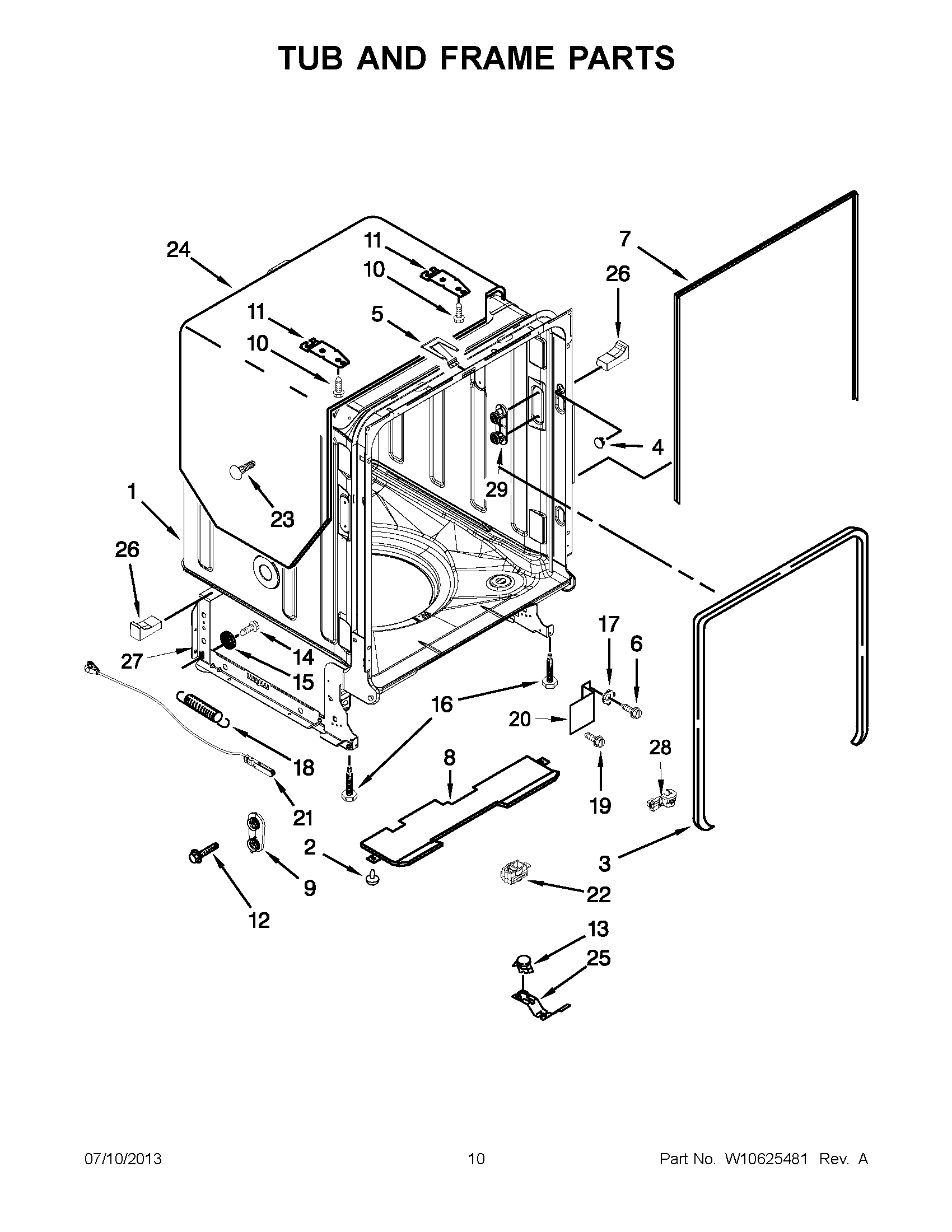

JDB8000AWB2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 3400924
3	SEAL, DOOR
4	MAY W10082838
5	STRIKE, PLATE
6	MAY 3400014
7	SEAL, CABINET
8	INSULATION BOTTOM
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	MAY W10339563
14	MAY W10348411
15	WHEEL, LEG
16	MAY W10304228
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400892
20	MAY 8268991
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	RETAINER, PUSH
24	MAY 8573240
25	MAY W10300703
26	SPACER, TUB/BRACE (RIGHT)
26	SPACER, TUB/BRACE (LEFT)
27	MAY W10398392
28	MAY W10337661
29	MAY W10505748
