JDB8000AWB3 03 – CONTROL PANEL AND LATCH PARTS

JDB8000AWB3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

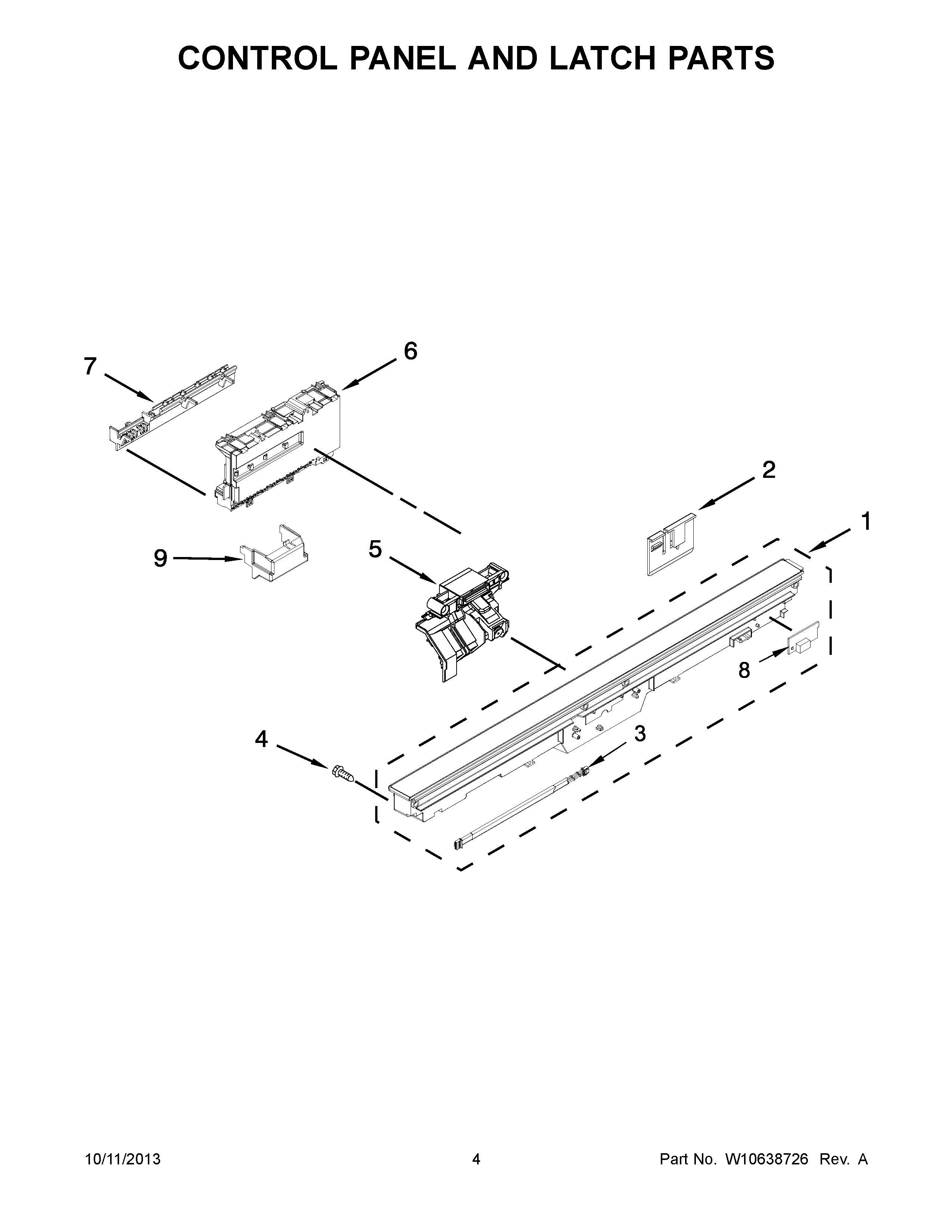

JDB8000AWB3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
2CLIP, CONTROL
3MAY W10528492
4SCREW
5MAY W10574864
6MAY W10481091
7BRACE, CONNECTOR
8LIGHT, STATUS
9BOX, CONNECTOR
