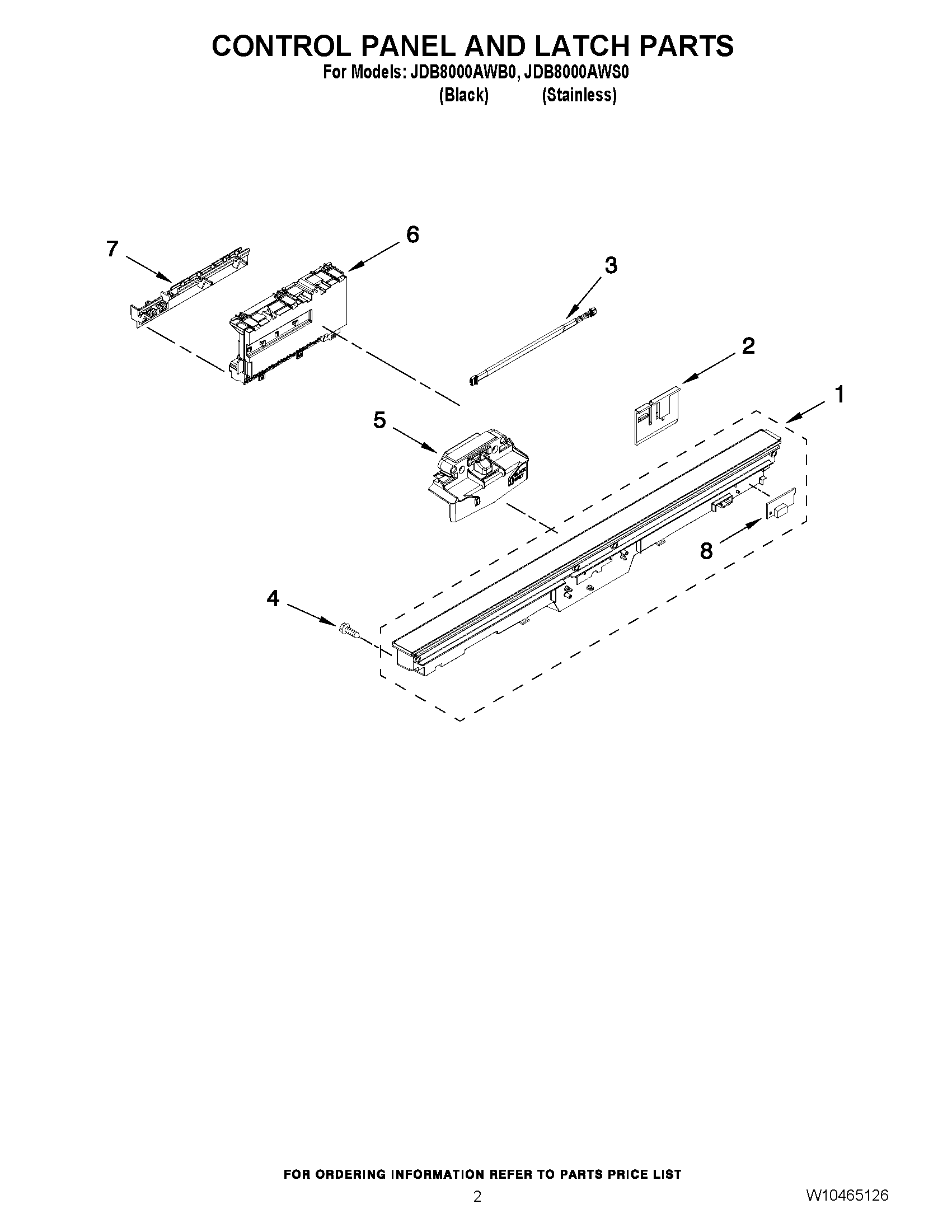

JDB8000AWS0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
2CLIP, CONTROL
3MAY W10195666
4SCREW
5LATCH ASSEMBLY (INCLUDES SWITCH)
6MAY W10375790
7MAY W10194937
8LIGHT, STATUS
