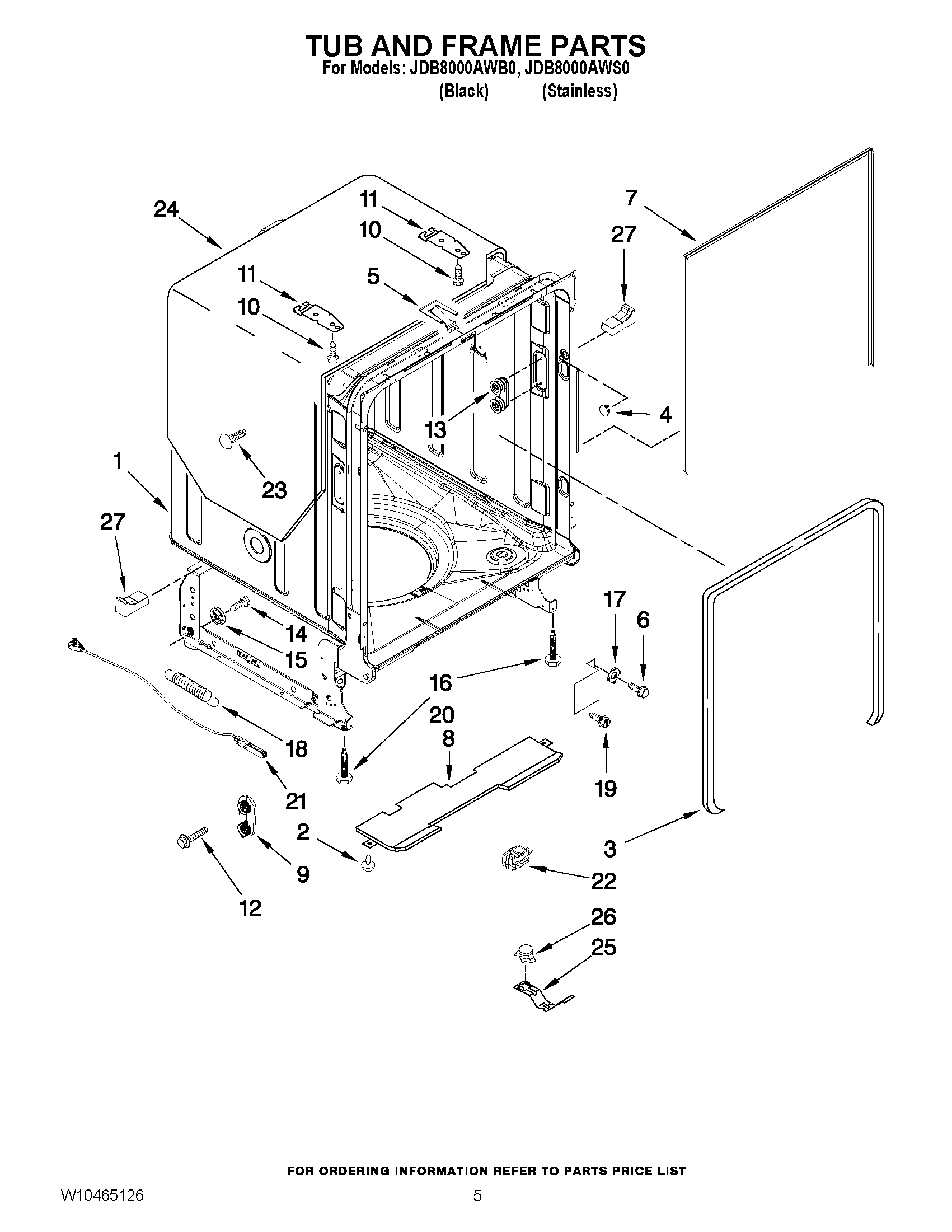

JDB8000AWS0 05 – TUB AND FRAME PARTS

JDB8000AWS0 05 – TUB AND FRAME PARTS

Written by

in

JDB8000AWS0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10390304
2	MAY 3400924
3	SEAL, DOOR
4	MAY W10082838
5	STRIKE, PLATE
6	MAY 3400014
7	SEAL, CABINET
8	INSULATION BOTTOM
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	WHEEL-TUB
14	MAY W10348411
15	WHEEL, LEG
16	MAY 8524584
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400892
20	MAY 8268991
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	RETAINER, PUSH
24	MAY 8573240
25	MAY W10300703
26	MAY W10339563
27	SPACER, TUB/BRACE (RIGHT)
27	SPACER, TUB/BRACE (LEFT)
