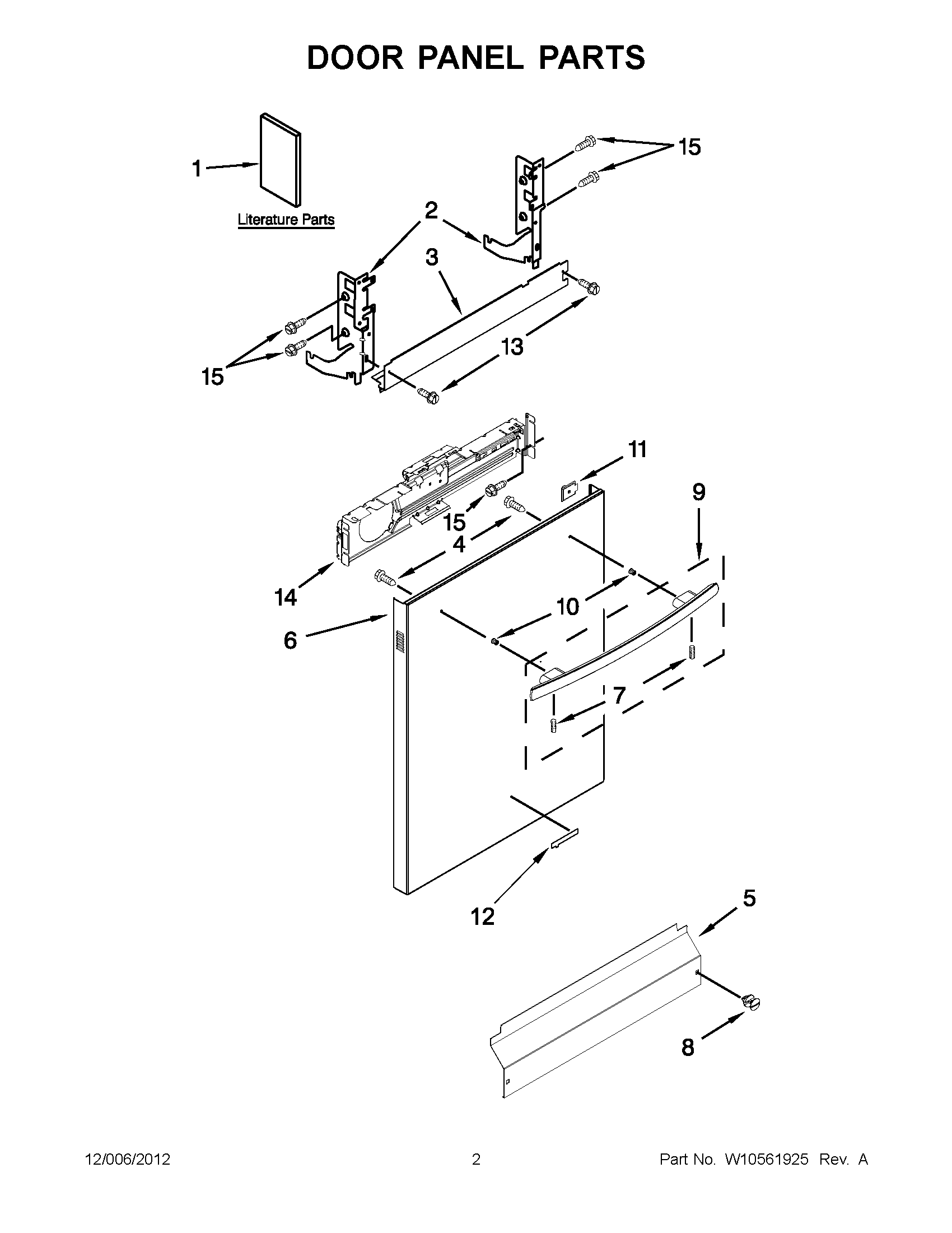

JDB8000AWS1 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10501737
1	MAY W10455257
1	MAY W10455258
1	MAY W10490712
1	MAY W10501738
2	MAY 8534853
2	MAY 8534854
3	VAPOR BARRIER ASSEMBLY
4	MAY W10316572
5	MAY W10441006
6	PANEL, FRONT (BLACK)
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	MAY W10503548
9	HANDLE ASSEMBLY (BLACK)
9	HANDLE ASSEMBLY (STAINLESS)
10	STUD, MOUNTING
11	LIGHT, PIPE
12	ASSEMBLY, BADGE (STAINLESS)
12	ASSEMBLY, BADGE (BLACK)
13	Screw
14	MAY W10194911
15	SCREW
