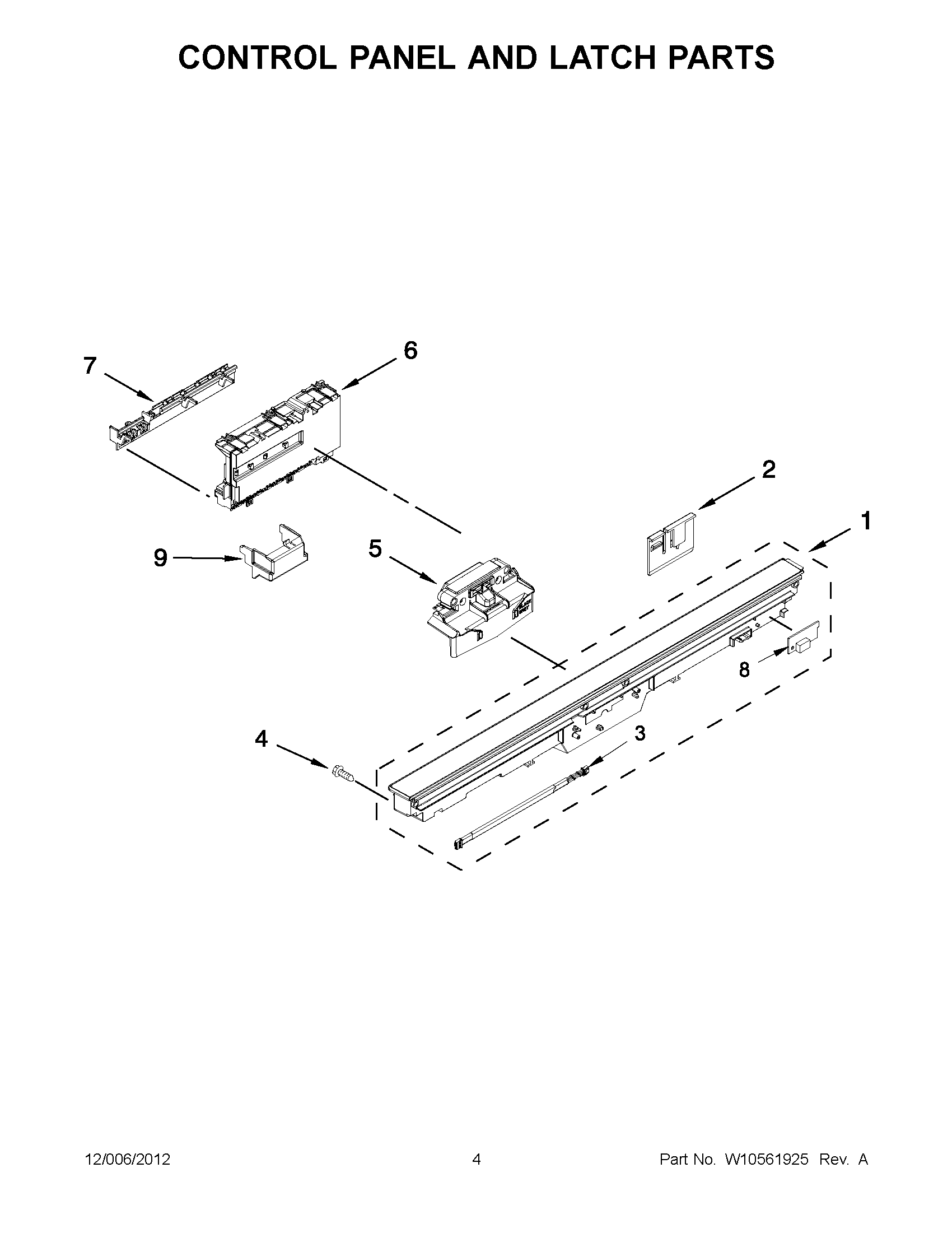

JDB8000AWS1 02 – CONTROL PANEL AND LATCH PARTS

JDB8000AWS1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

JDB8000AWS1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1MAY W10418326
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2CLIP, CONTROL
3MAY W10315814
4SCREW
5LATCH ASSEMBLY (INCLUDES SWITCH)
6MAY W10403604
7BRACE, CONNECTOR
8LIGHT, STATUS
9BOX, CONNECTOR
