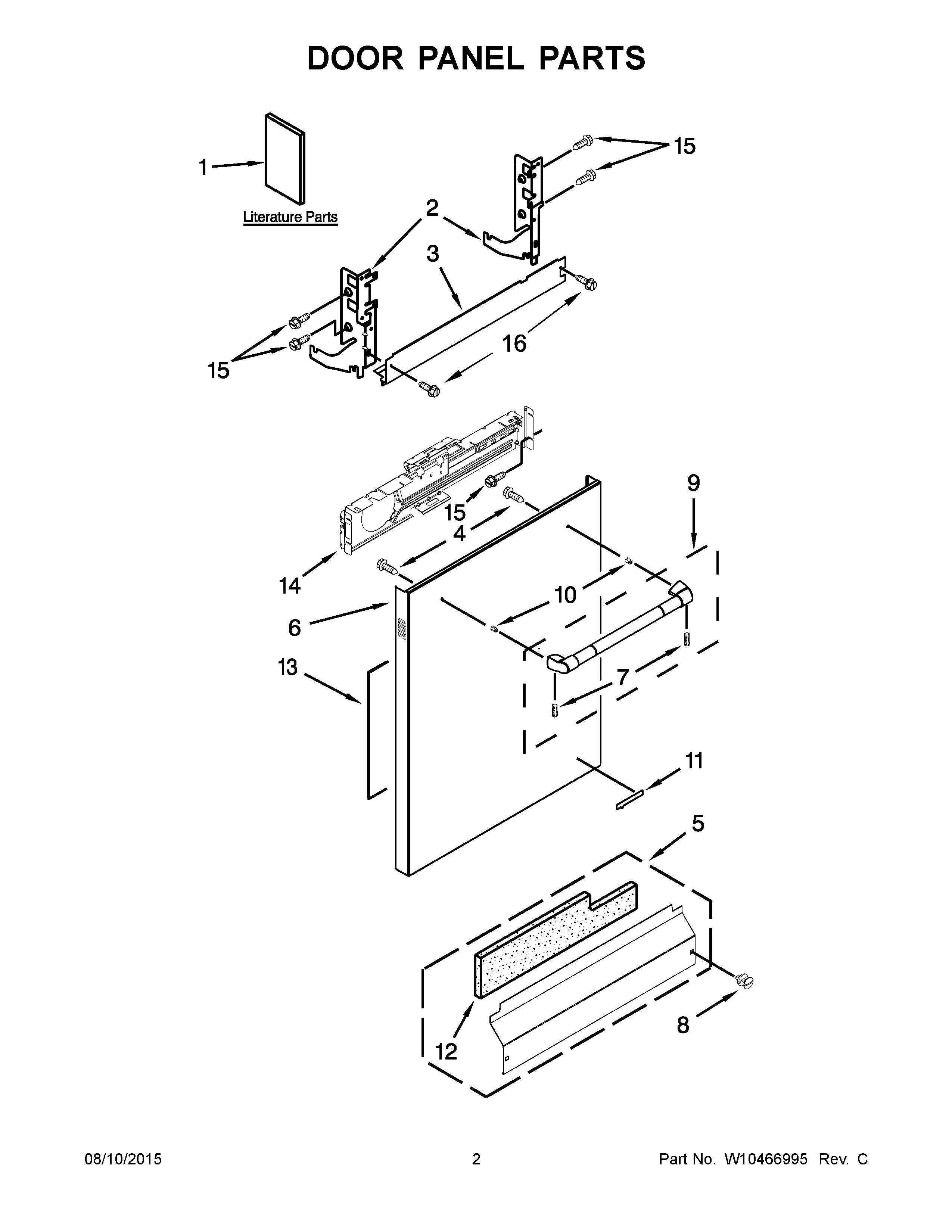

JDB8200AWP0 02 – DOOR PANEL PARTS

Products

PositionProduct
1CMAY W10321874
1DMAY W10321875
1AMAY W10460138
1MAY W10418362
1BMAY W10418360
2AMAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5MAY W10369024
6PANEL, FRONT (STAINLESS)
7SCREW, SET
8SCREW (BLACK)
9MAY W10409518
10STUD, MOUNTING
11NAMEPLATE (STAINLESS)
12INSULATION, ACCESS PANEL
13INSULATION, FRONT PANEL
14MAY W10194911
15SCREW
16Screw
