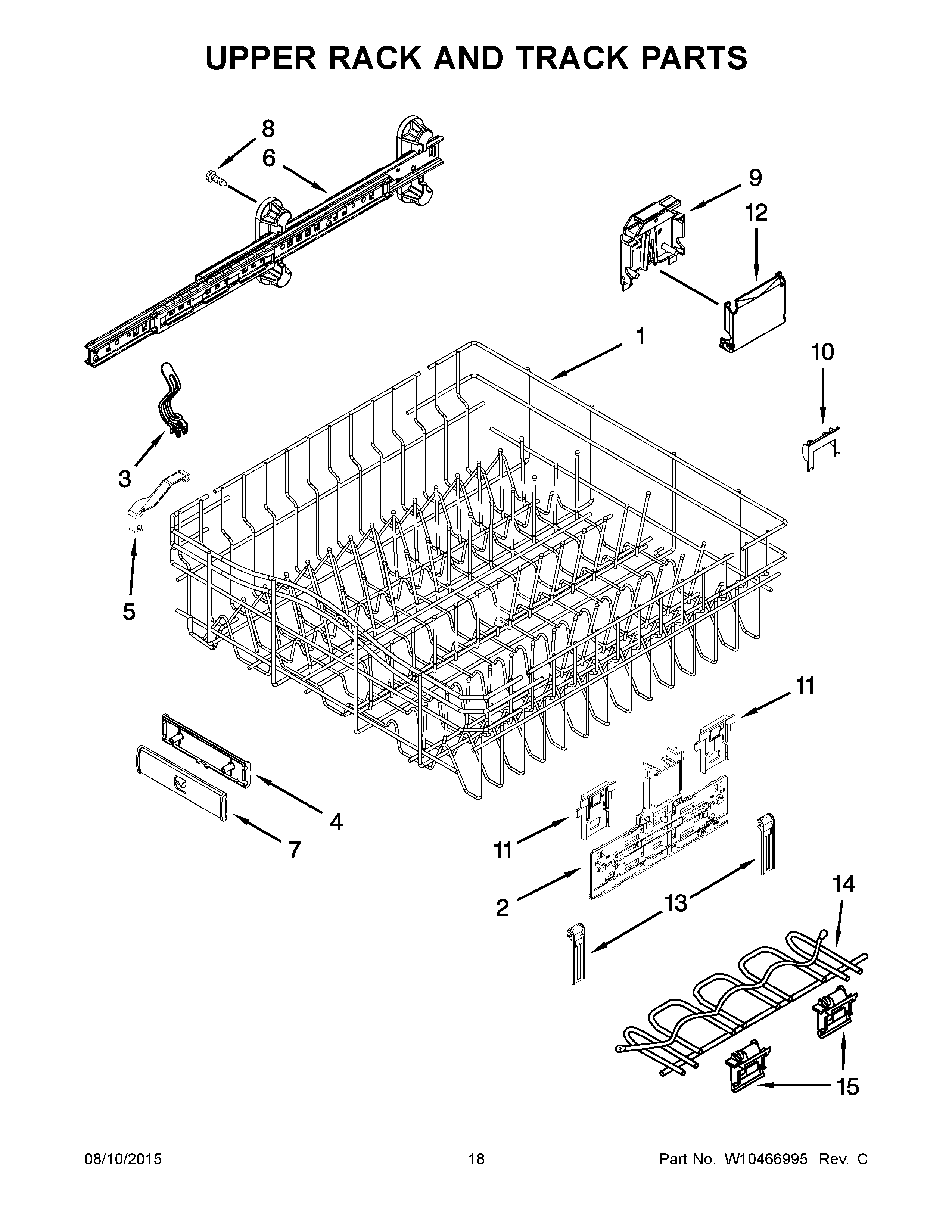

JDB8200AWP0 10 – UPPER RACK AND TRACK PARTS

JDB8200AWP0 10 – UPPER RACK AND TRACK PARTS

Written by

in

JDB8200AWP0 10 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	MAY W10194864
2	MAY W10418314
3	MAY W10238406
4	MAY W10056298
5	CLIP, DISPENSER GUARD
6A	TRACK, ASSEMBLY (LAVA RAIL, LH)
6	TRACK, ASSEMBLY (LAVA RAIL, RH)
7	MAY W10056297
8	MAY W10309090
9A	HOUSING ADJUSTER (LEFT HAND)
9	HOUSING ADJUSTER (RIGHT HAND)
10	MAY W10418320
11	MAY W10418323
12	MAY W10418321
13	MAY W10418322
14	MAY W10208697
15	MAY W10238407
