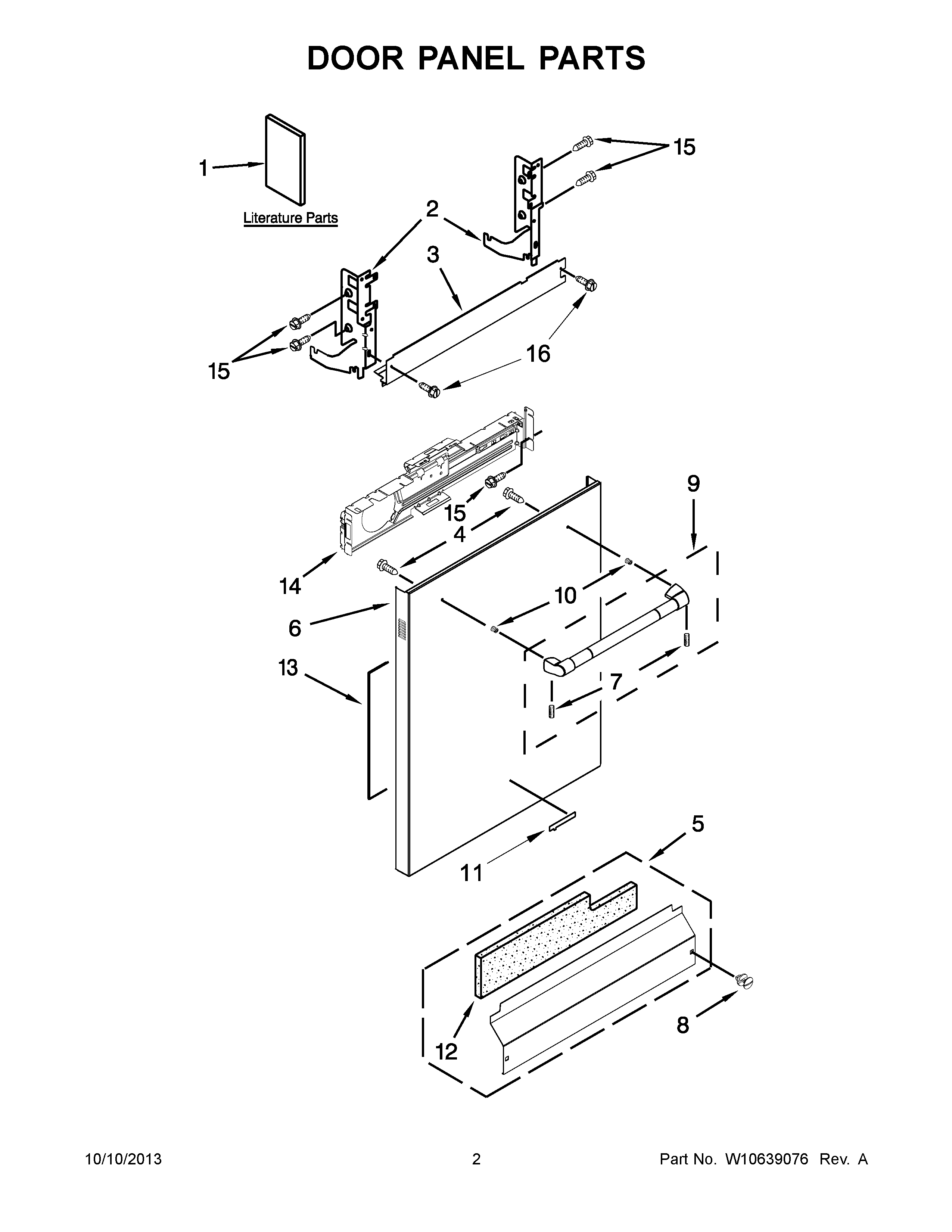

JDB8200AWP3 02 – DOOR PANEL PARTS

JDB8200AWP3 02 – DOOR PANEL PARTS

Written by

in

JDB8200AWP3 02 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10455258
1	MAY W10501738
1	MAY W10638767
1	MAY W10596235
1	MAY W10455257
2	MAY 8534853
2	MAY 8534854
3	VAPOR BARRIER ASSEMBLY
4	MAY W10316572
5	MAY W10369024
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	MAY W10503548
9	MAY W10409518
10	STUD, MOUNTING
11	NAMEPLATE (STAINLESS)
12	INSULATION, ACCESS PANEL
13	MAY W10073520
14	MAY W10194911
15	SCREW
16	Screw
