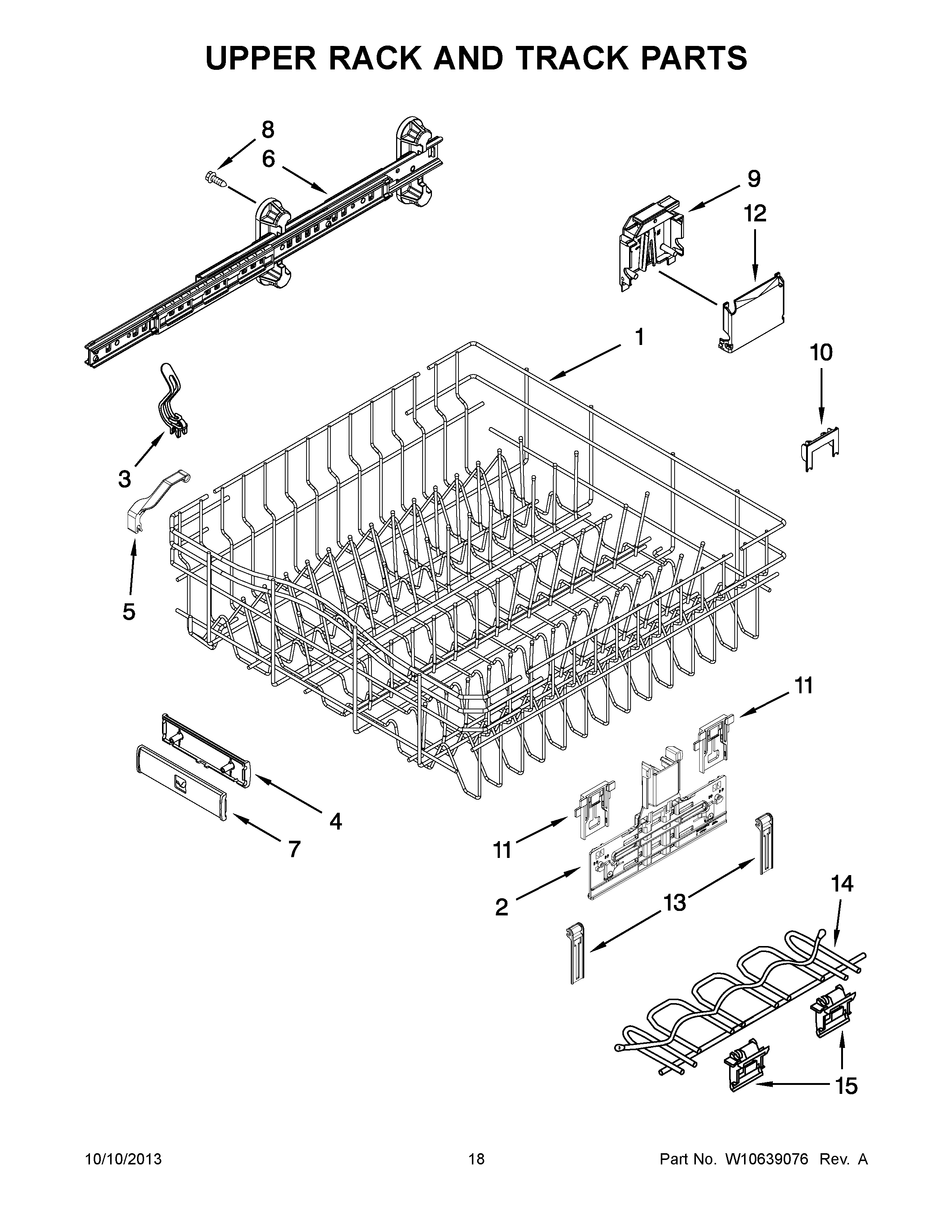

JDB8200AWP3 10 – UPPER RACK AND TRACK PARTS

JDB8200AWP3 10 – UPPER RACK AND TRACK PARTS

Written by

in

JDB8200AWP3 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1MAY W10194864
2MAY W10306646
3CLIP, NO FLIP
4MAY W10587968
5CLIP, DISPENSER GUARD
6TRACK ASSEMBLY (LEFT HAND)
6TRACK ASSEMBLY (RIGHT HAND)
7MAY W10587967
8MAY W10309090
9HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
9HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
10CLIP-LOCK ADJUSTER ARM
11POSITIONER, ADJUSTER
12MAY W10250162
13MAY W10195839
14MAY W10208697
15CLIP, CUPSHELF
