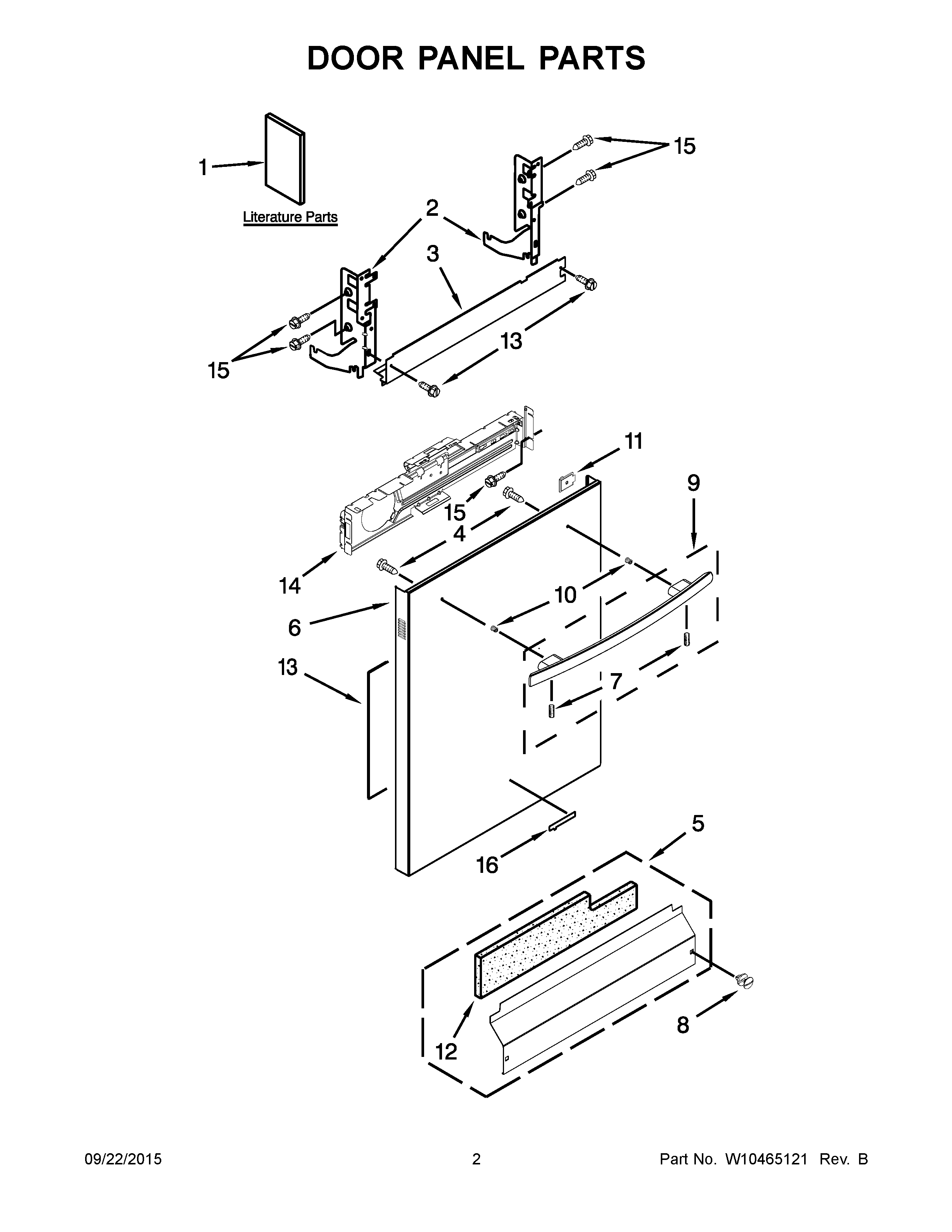

JDB8200AWS0 02 – DOOR PANEL PARTS

Products

Position	Product
1A	MAY W10460138
1	MAY W10418362
1B	MAY W10418360
1C	MAY W10321874
1D	MAY W10321875
2A	MAY 8534853
2	MAY 8534854
3	VAPOR BARRIER ASSEMBLY
4	MAY W10316572
5	MAY W10369024
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	SCREW (BLACK)
9	HANDLE ASSEMBLY (STAINLESS)
10	STUD, MOUNTING
11	LIGHT, PIPE
12	INSULATION, ACCESS PANEL
13	INSULATION, FRONT PANEL
14	MAY W10194911
15	SCREW
16	ASSEMBLY, BADGE (STAINLESS)
