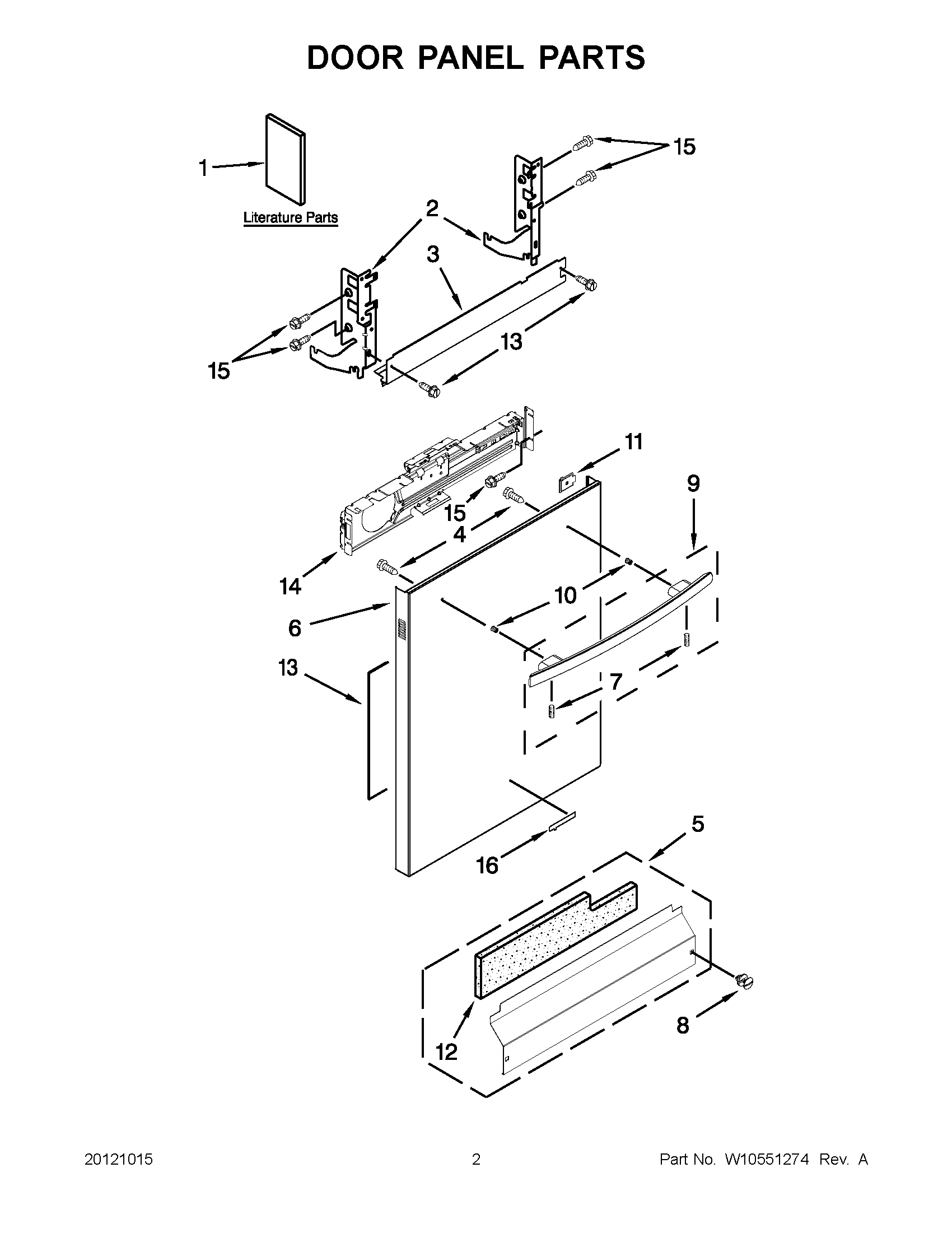

JDB8200AWS1 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10418361
1	MAY W10455257
1	MAY W10455258
1	MAY W10490712
1	MAY W10418360
1	MAY W10418362
2	MAY 8534854
2	MAY 8534853
3	VAPOR BARRIER ASSEMBLY
4	MAY W10316572
5	MAY W10369024
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	SCREW (BLACK)
9	HANDLE ASSEMBLY (STAINLESS)
10	STUD, MOUNTING
11	LIGHT, PIPE
12	INSULATION, ACCESS PANEL
13	MAY W10073520
14	MAY W10194911
15	SCREW
16	ASSEMBLY, BADGE (STAINLESS)
