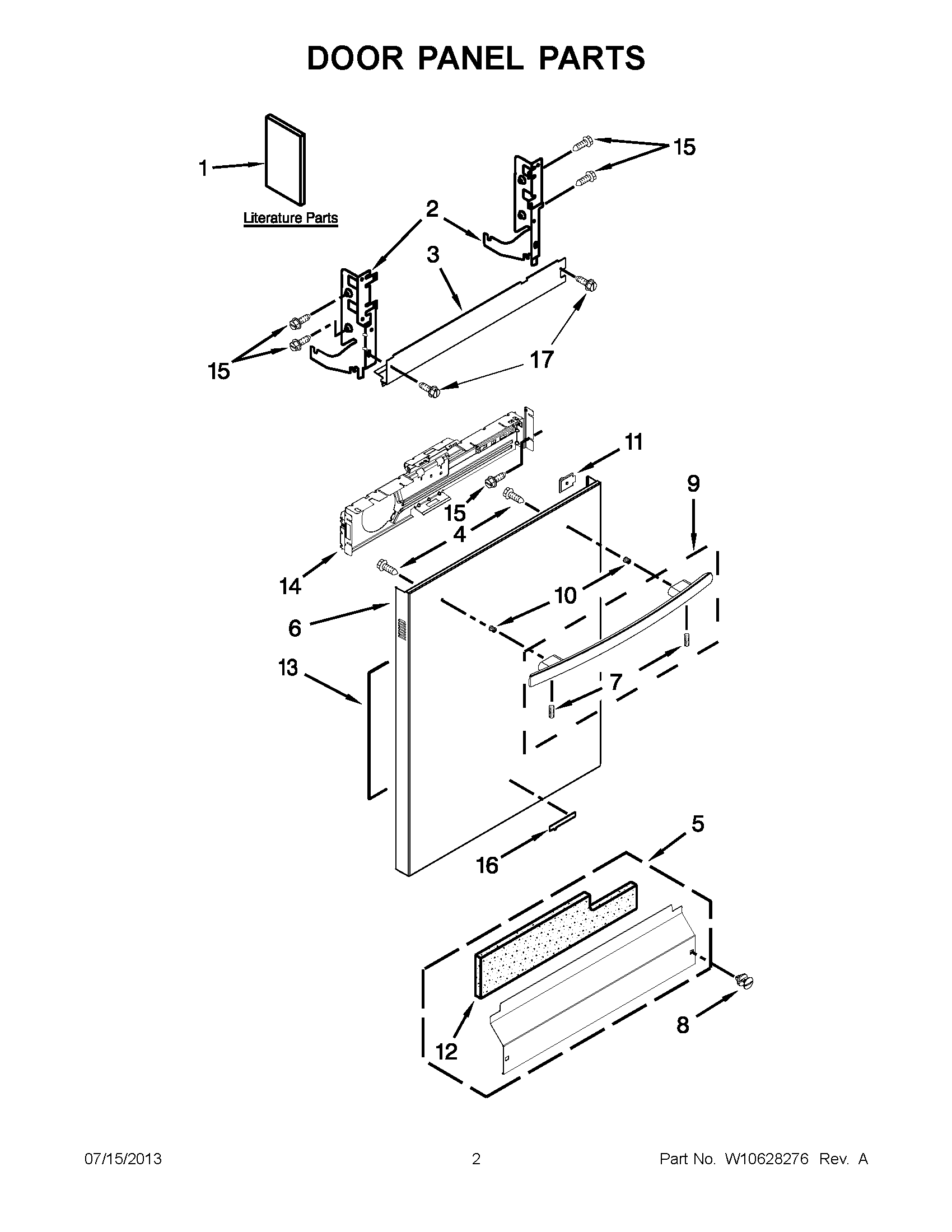

JDB8200AWS2 01 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10455258
1MAY W10490712
1MAY W10596235
1MAY W10501738
1MAY W10455257
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5MAY W10369024
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8MAY W10503548
9HANDLE ASSEMBLY (STAINLESS)
10STUD, MOUNTING
11LIGHT, PIPE
12INSULATION, ACCESS PANEL
13MAY W10073520
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17Screw
