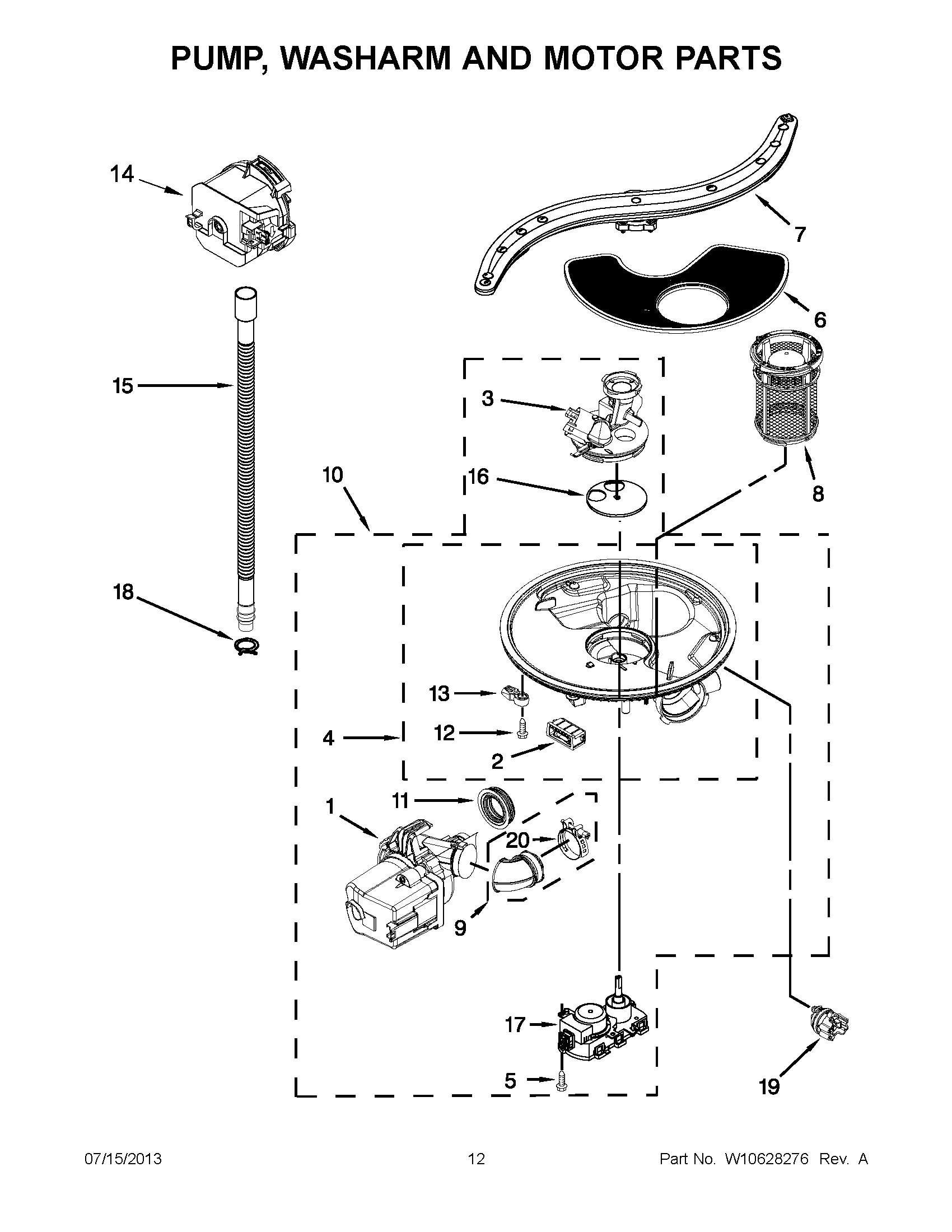

JDB8200AWS2 06 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	MAY W10314568
2	MOTOR, ISOLATOR
3	COVER, OUTLET
4	SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5	MAY 9741232
6	MAY W10195360
7	MAY W10333330
8	MAY W10465374
9	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
10	MAY W10455260
11	GROMMET
12	MAY W10348407
13	TAB, SUMP
14	MOTOR, DRAIN
15	MAY 8269144
16	DISC, DIVERTER
17	MAY W10476222
18	HOSE CLAMP
19	MAY W10134017
20	CLAMP, HOSE
