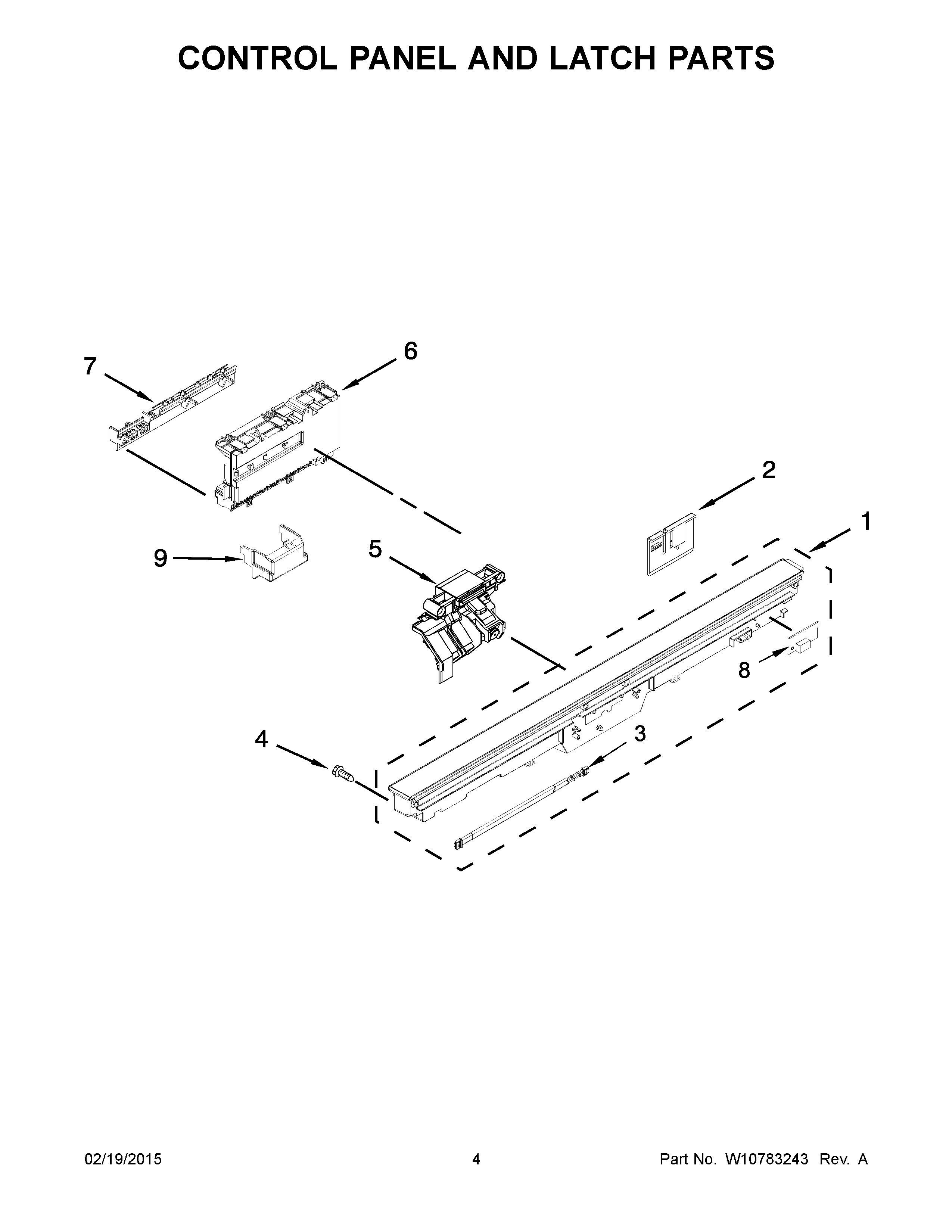

JDB8200AWS4 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	MAY W10418326
2	CLIP, CONTROL
3	MAY W10528492
4	SCREW
5	LATCH ASSEMBLY (INCLUDES SWITCH)
6	MAY W10481091
7	BRACE, CONNECTOR
8	LIGHT, PIPE
9	BOX, CONNECTOR
