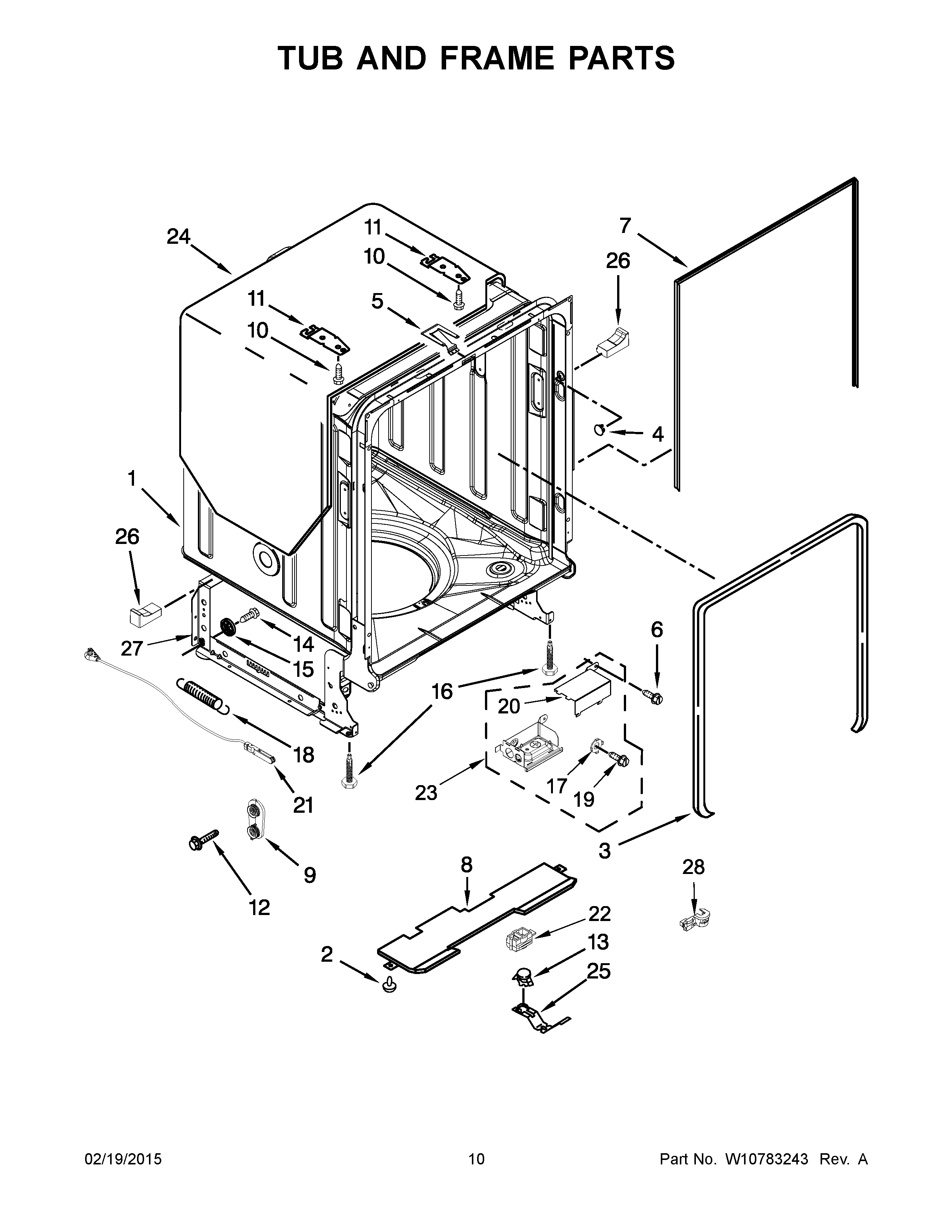

JDB8200AWS4 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	MAY 3400924
3	SEAL, DOOR
4	MAY W10082838
5	STRIKE, LATCH
6	Screw
7	SEAL, CABINET
8	INSULATION BOTTOM
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	MAY W10195091
14	MAY W10348411
15	WHEEL LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400014
20	COVER, TERMINAL BOX
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	ASSEMBLY, TERMINAL BOX
24	MAY 8573240
25	MAY W10300703
26A	SPACER, TUB/BRACE (RIGHT)
26	SPACER, TUB/BRACE (LEFT)
27	SUPPORT ASSEMBLY, REAR
28	MAY W10337661
