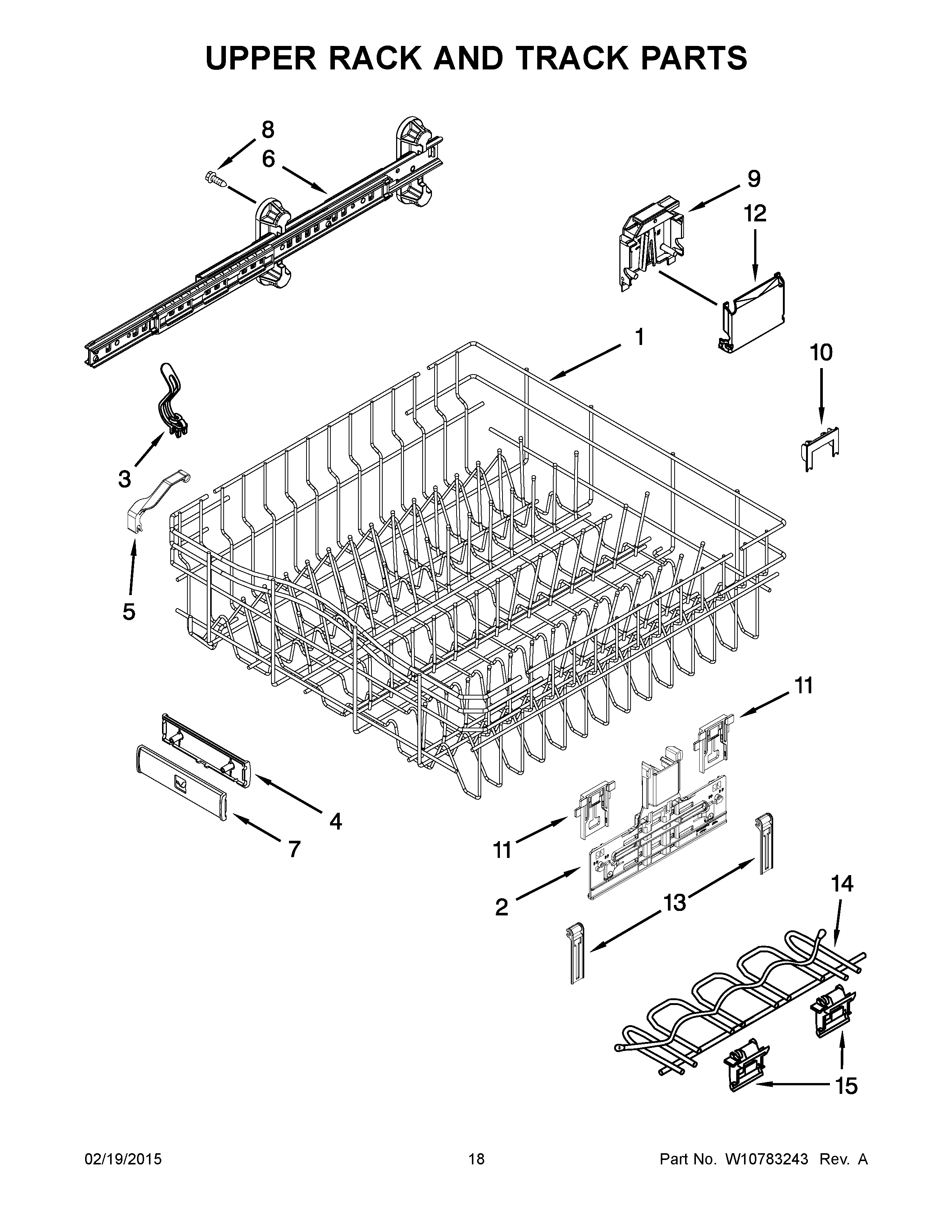

JDB8200AWS4 10 – UPPER RACK AND TRACK PARTS

JDB8200AWS4 10 – UPPER RACK AND TRACK PARTS

Written by

in

JDB8200AWS4 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1MAY W10194864
2ADJUSTER ASSEMBLY
3CLIP, NO FLIP
4MAY W10587968
5CLIP, DISPENSER GUARD
6MAY W10752596
6AMAY W10752595
7MAY W10587967
8MAY W10309090
9HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
9AHOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
10CLIP-LOCK ADJUSTER ARM
11POSITIONER, ADJUSTER
12MAY W10250162
13MAY W10195839
14CUPSHELF
15CLIP, CUPSHELF
