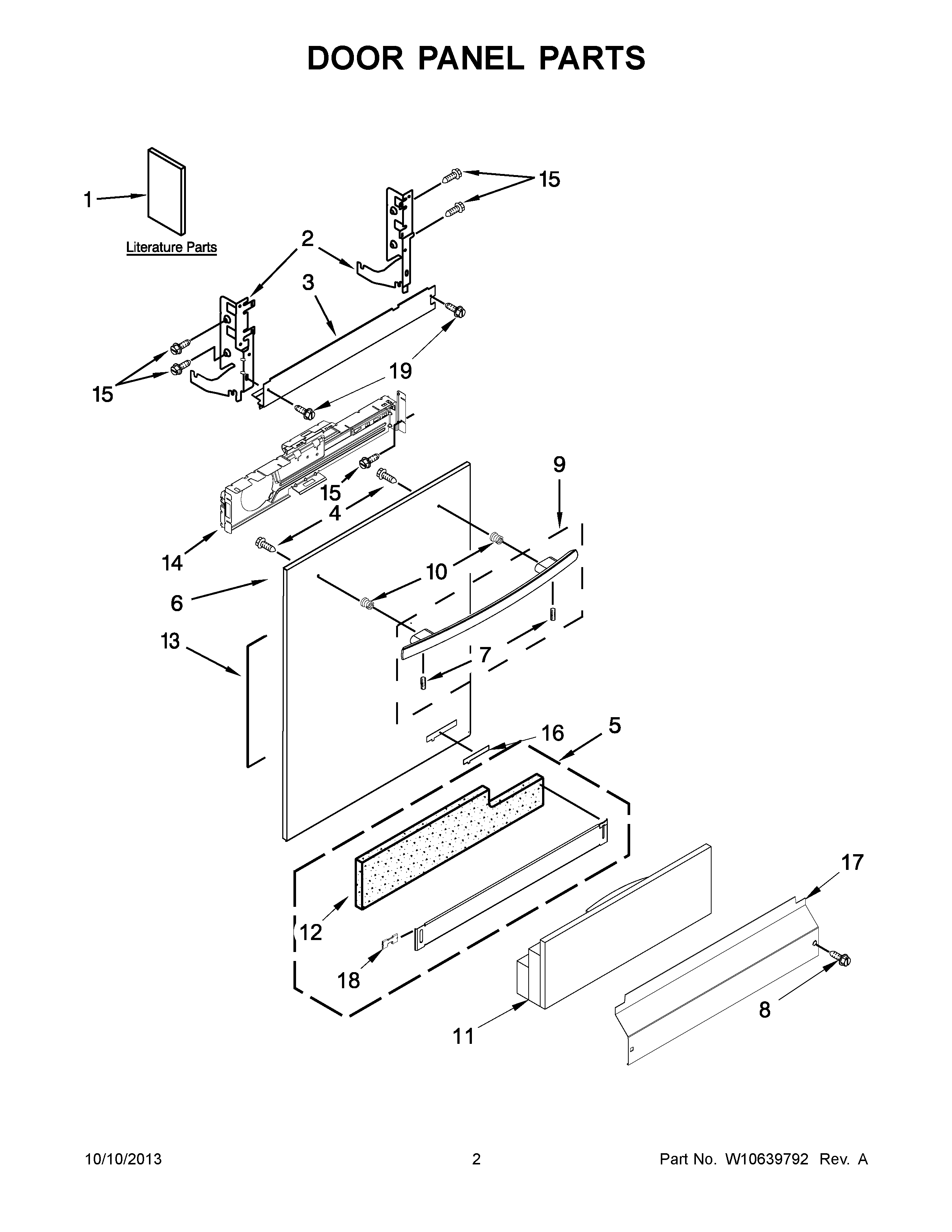

JDB8500AWF3 02 – DOOR PANEL PARTS

JDB8500AWF3 02 – DOOR PANEL PARTS

Written by

in

JDB8500AWF3 02 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10455258
1MAY W10638772
1MAY W10596235
1MAY W10455257
1MAY W10501738
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
5TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (BLACK)
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (WHITE)
7MAY W10276608
8WP3400836 Whirlpool Dishwasher Screw
8SCREW (BLACK)
9MAY W10496320
9MAY W10496321
10MAY W10208695
11MAY W10350437
12INSULATION, TOE PANEL
13MAY W10073520
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (WHITE)
16ASSEMBLY, BADGE (BLACK)
17MAY W10195778
17MAY W10195777
18CLIP, GROUNDING
19Screw
