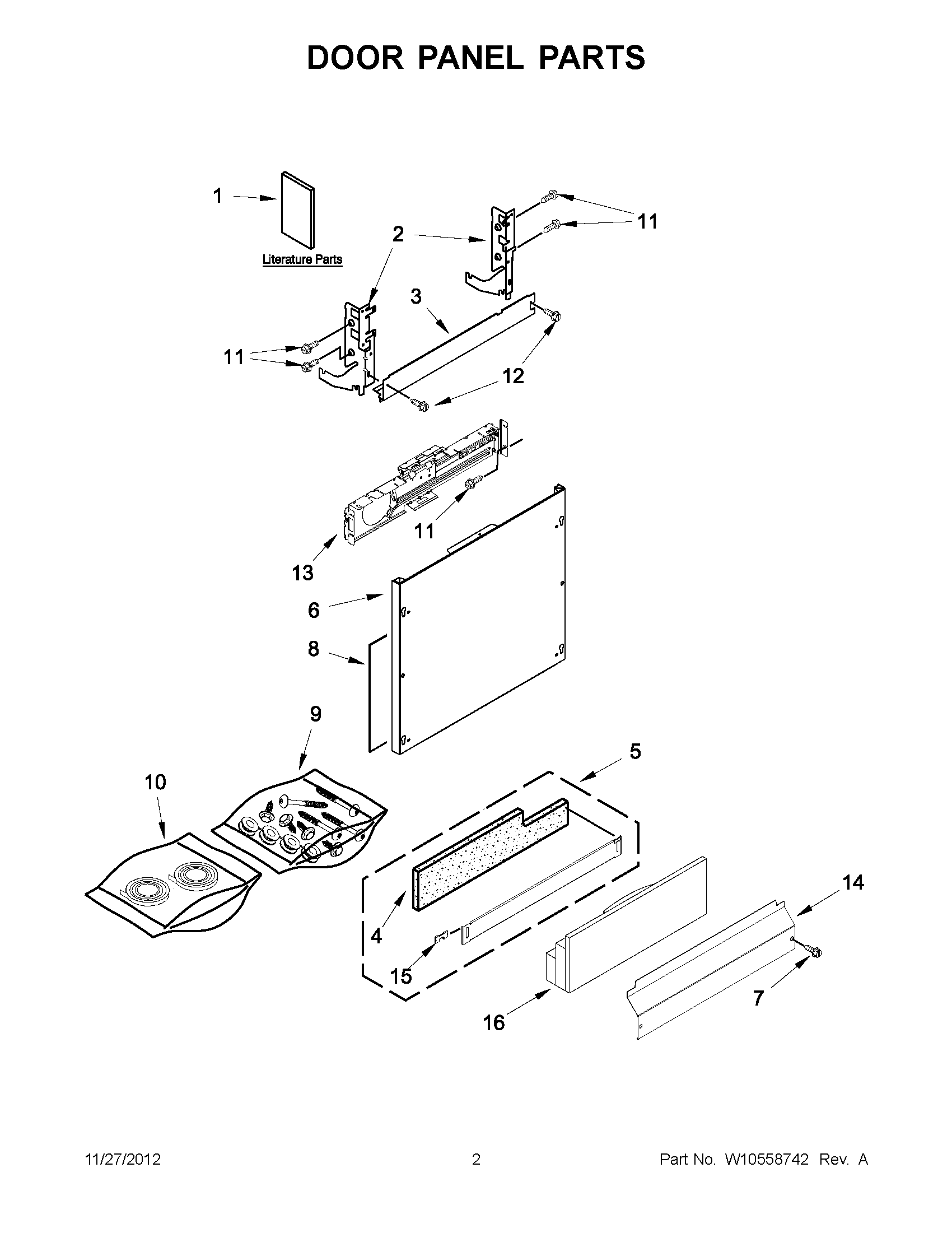

JDB8500AWX1 01 – DOOR PANEL PARTS

JDB8500AWX1 01 – DOOR PANEL PARTS

Written by

in

JDB8500AWX1 01 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10501742
1MAY W10455257
1TEMPLATE, 6" CUSTOM PANEL
1MAY W10455258
1MAY W10501738
1MAY W10501737
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4INSULATION, TOE PANEL
5TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
6PANEL, CUSTOM 6“ (BLACK)
7SCREW (BLACK)
8INSULATION, FRONT PANEL
9HARDWARE, CUSTOM PANEL
10SEAL, PANEL READY
11SCREW
12Screw
13MAY W10194911
14MAY W10195777
15CLIP, GROUNDING
16MAY W10350437
