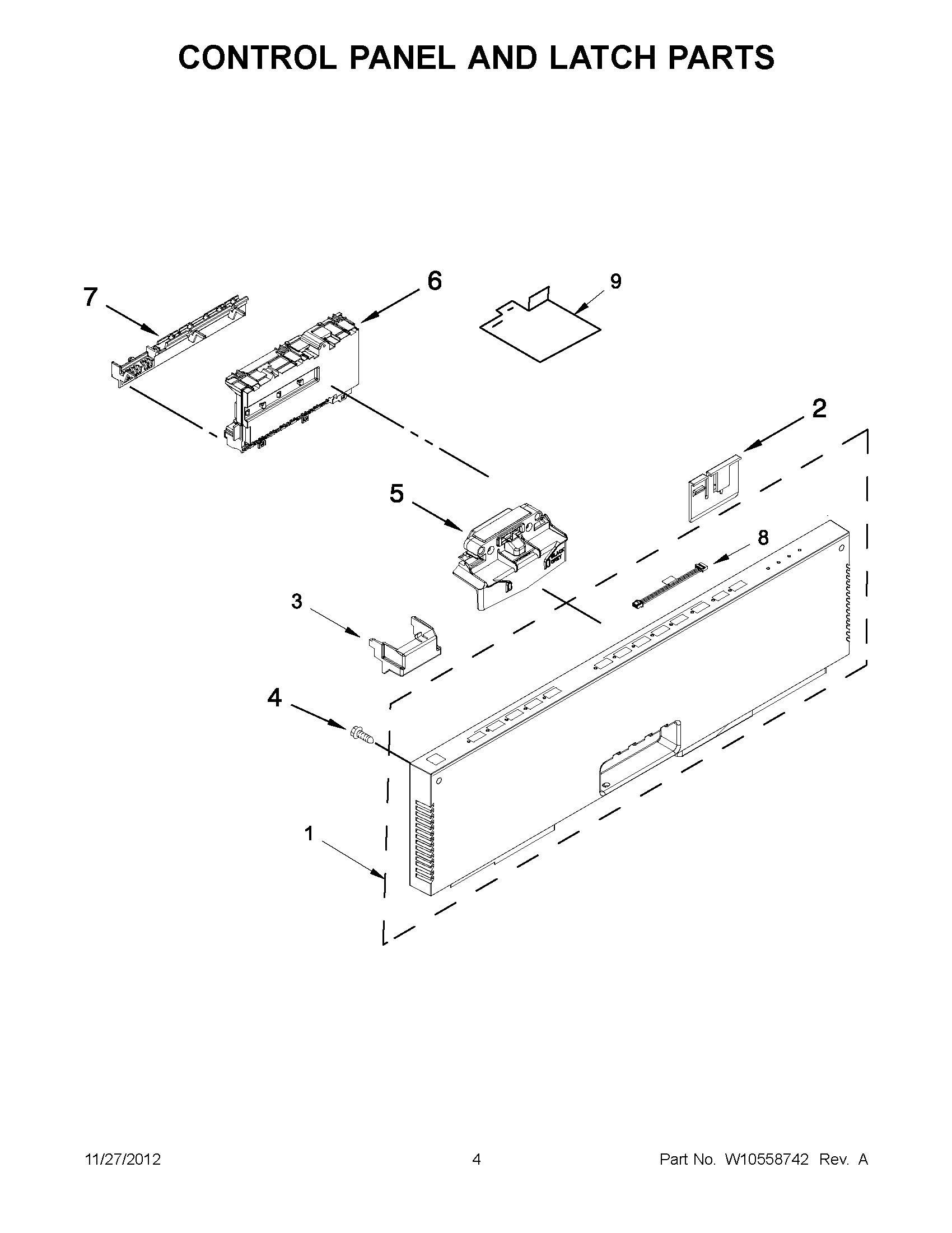

JDB8500AWX1 02 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	MAY W10501715
2	CLIP, CONTROL
3	BOX, CONNECTOR
4	SCREW
5	LATCH ASSEMBLY (INCLUDES SWITCH)
6	MAY W10403604
7	BRACE, CONNECTOR
8	MAY W10315814
9	SHIELD, CONTROL
