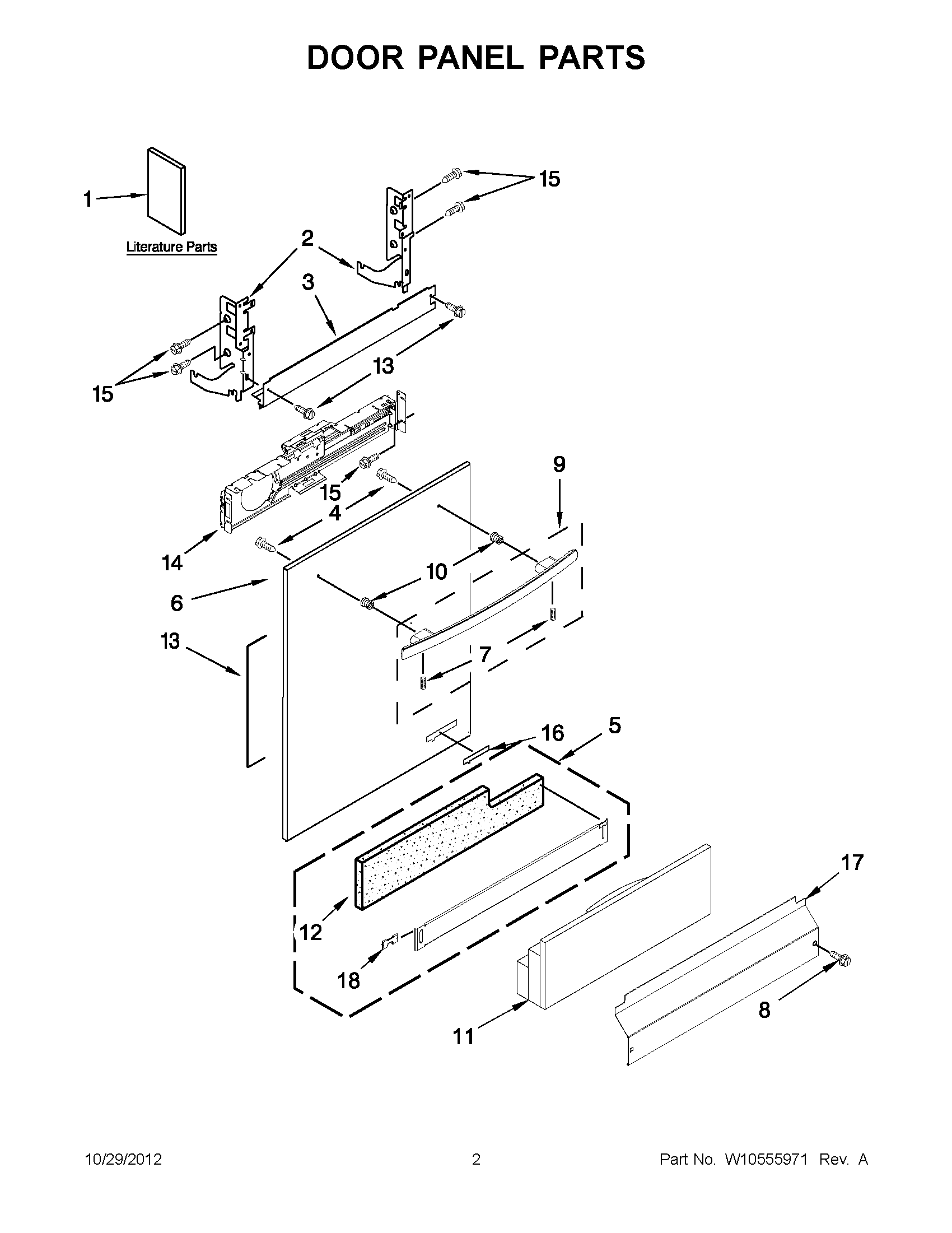

JDB8500AWY1 01 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10501738
1MAY W10501742
1MAY W10501737
1MAY W10455257
1MAY W10455258
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
5TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (WHITE)
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (BLACK)
7MAY W10276608
8SCREW (BLACK)
8WP3400836 Whirlpool Dishwasher Screw
9MAY W10496320
9MAY W10496321
10MAY W10208695
11MAY W10350437
12INSULATION, TOE PANEL
13MAY W10073520
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (BLACK)
16ASSEMBLY, BADGE (WHITE)
17MAY W10195777
17MAY W10195778
18CLIP, GROUNDING
