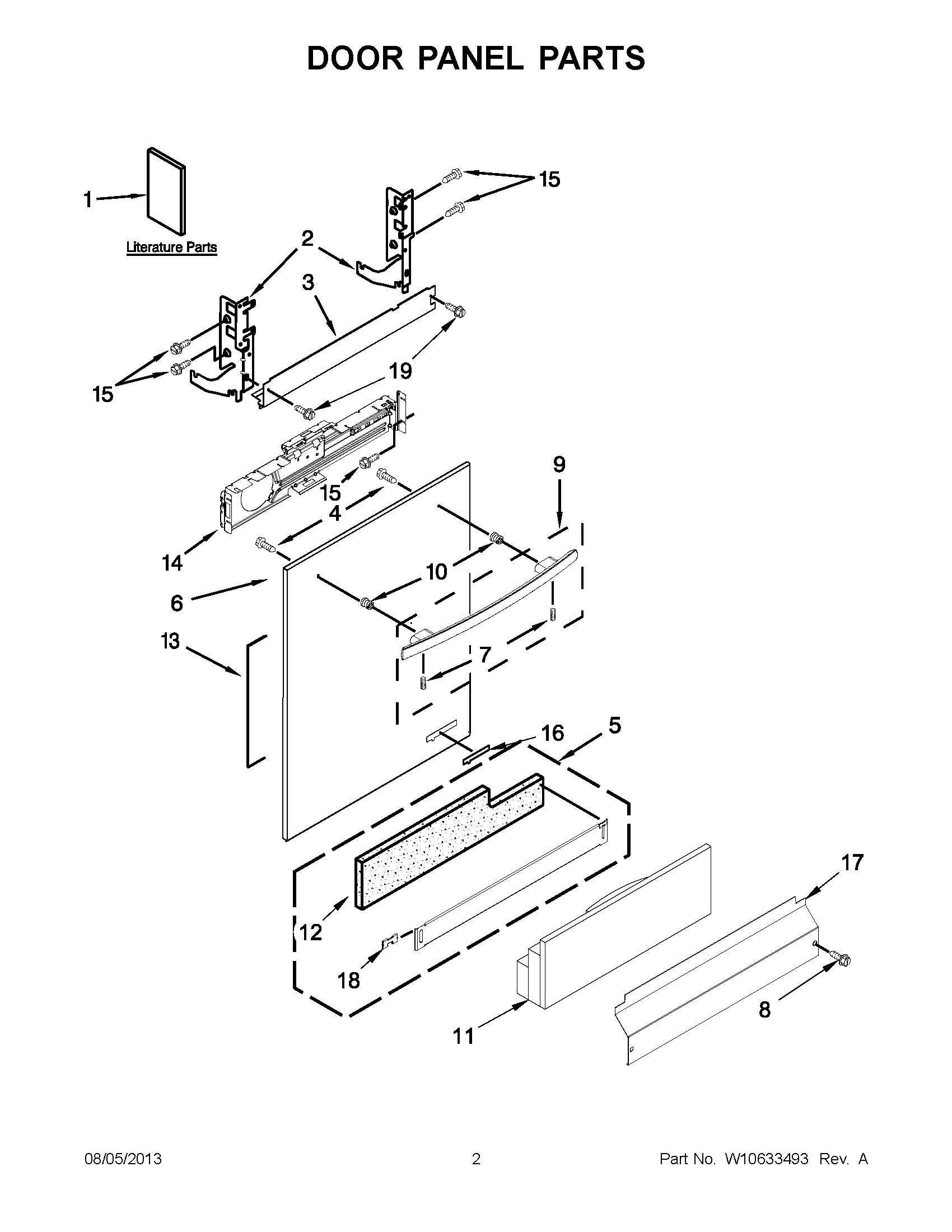

JDB8500AWY2 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10455258
1	MAY W10501742
1	MAY W10596235
1	MAY W10455257
1	MAY W10501738
2	MAY 8534853
2	MAY 8534854
3	VAPOR BARRIER ASSEMBLY
4	MAY W10316572
5	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
5	TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
6	PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (BLACK)
6	PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (WHITE)
7	MAY W10276608
8	WP3400836 Whirlpool Dishwasher Screw
8	SCREW (BLACK)
9	MAY W10496320
9	MAY W10496321
10	MAY W10208695
11	MAY W10350437
12	INSULATION, TOE PANEL
13	MAY W10073520
14	MAY W10194911
15	SCREW
16	ASSEMBLY, BADGE (WHITE)
16	ASSEMBLY, BADGE (BLACK)
17	MAY W10195778
17	MAY W10195777
18	CLIP, GROUNDING
19	Screw
