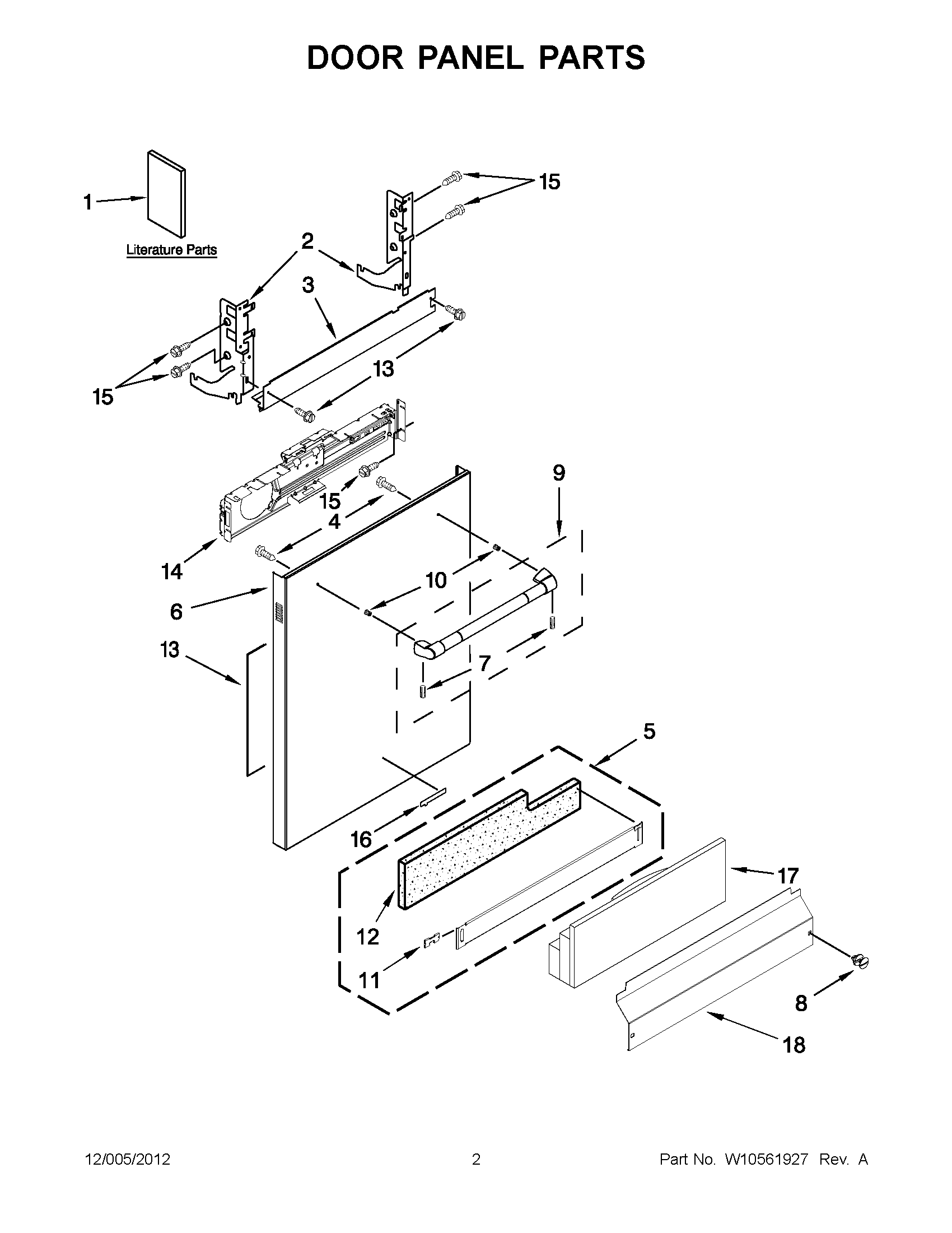

JDB8700AWP1 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10455257
1	MAY W10455258
1	MAY W10490712
1	MAY W10501738
1	MAY W10501737
2	MAY 8534853
2	MAY 8534854
3	MAY W10321447
4	MAY W10316572
5	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	SCREW (BLACK)
9	MAY W10409518
10	STUD, MOUNTING
11	CLIP, GROUNDING
12	INSULATION, TOE PANEL
13	INSULATION, FRONT PANEL
14	MAY W10194911
15	SCREW
16	NAMEPLATE (STAINLESS)
17	MAY W10350437
18	MAY W10195777
