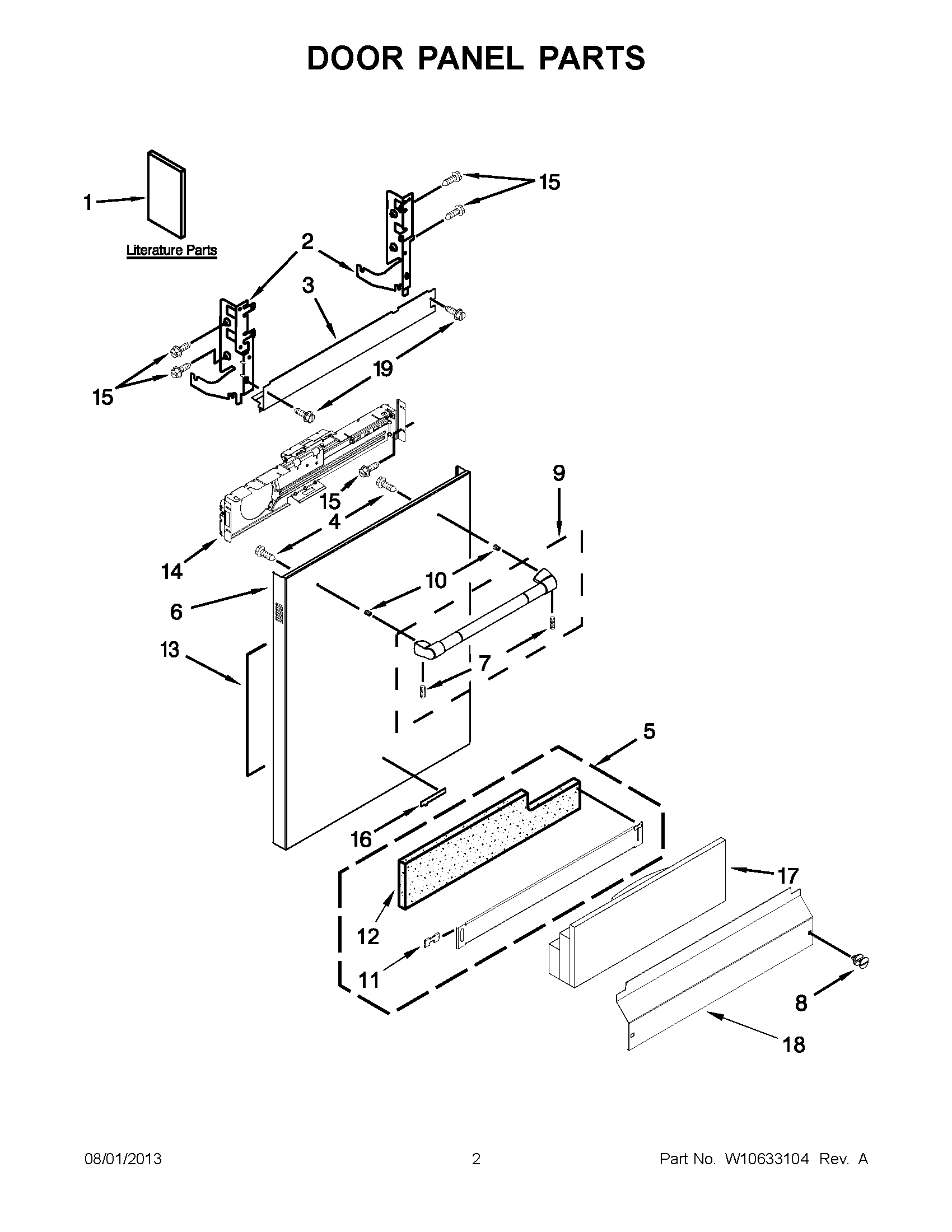

JDB8700AWP2 01 – DOOR PANEL PARTS

JDB8700AWP2 01 – DOOR PANEL PARTS

Written by

in

JDB8700AWP2 01 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10501738
1MAY W10490712
1MAY W10455258
1MAY W10596235
1MAY W10455257
2MAY 8534854
2MAY 8534853
3MAY W10321447
4MAY W10316572
5TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8SCREW (BLACK)
9MAY W10409518
10STUD, MOUNTING
11CLIP, GROUNDING
12INSULATION, TOE PANEL
13INSULATION, FRONT PANEL
14MAY W10194911
15SCREW
16NAMEPLATE (STAINLESS)
17MAY W10350437
18MAY W10195777
19Screw
