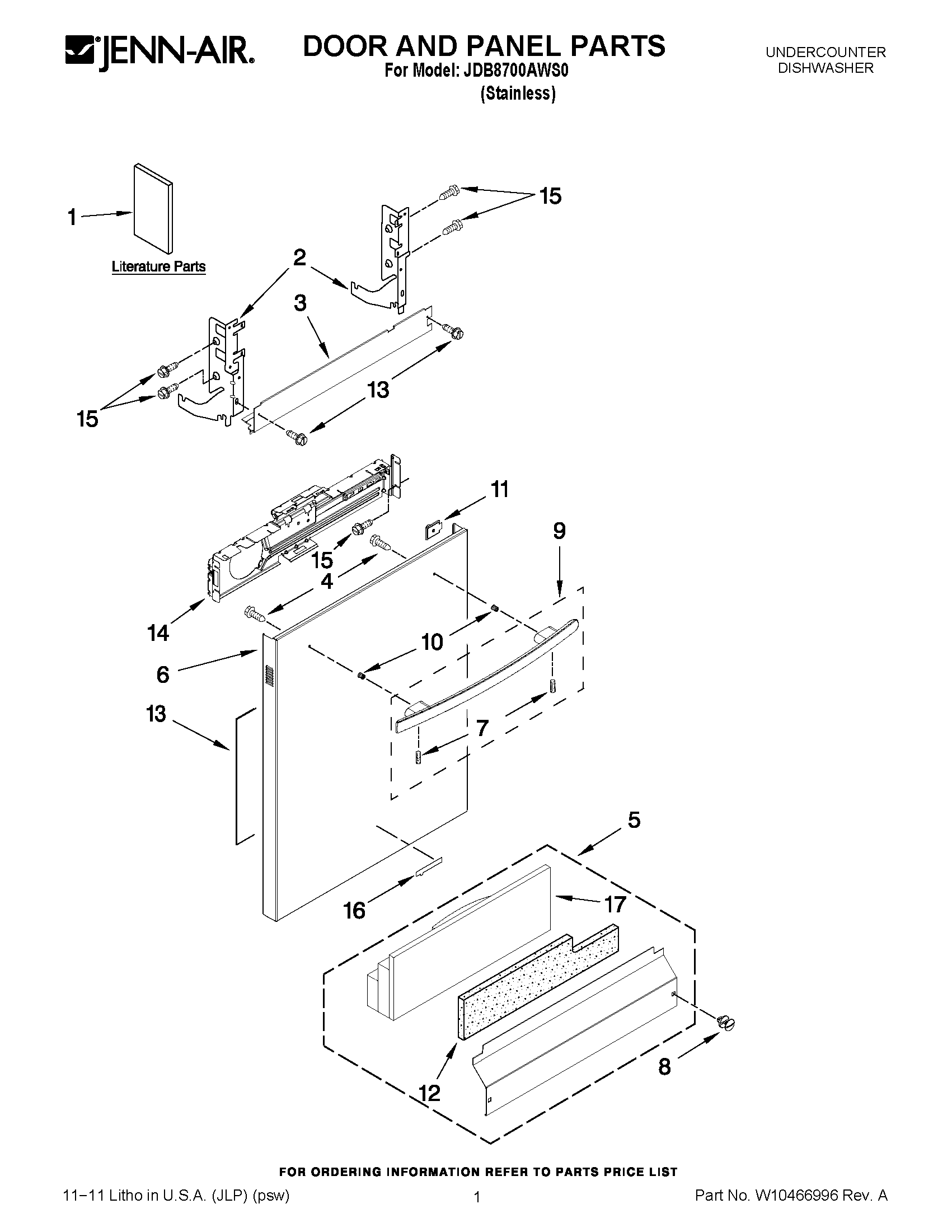

JDB8700AWS0 01 – DOOR AND PANEL PARTS

JDB8700AWS0 01 – DOOR AND PANEL PARTS

Written by

in

JDB8700AWS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10321875
1MAY W10460138
1MAY W10321874
1MAY W10418360
1MAY W10418362
2MAY 8534853
2MAY 8534854
3MAY W10321447
4MAY W10316572
5MAY W10368715
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8SCREW (BLACK)
9HANDLE ASSEMBLY (STAINLESS)
10STUD, MOUNTING
11LIGHT, PIPE
12INSULATION, TOE PANEL
13INSULATION, FRONT PANEL
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17MAY W10350437
