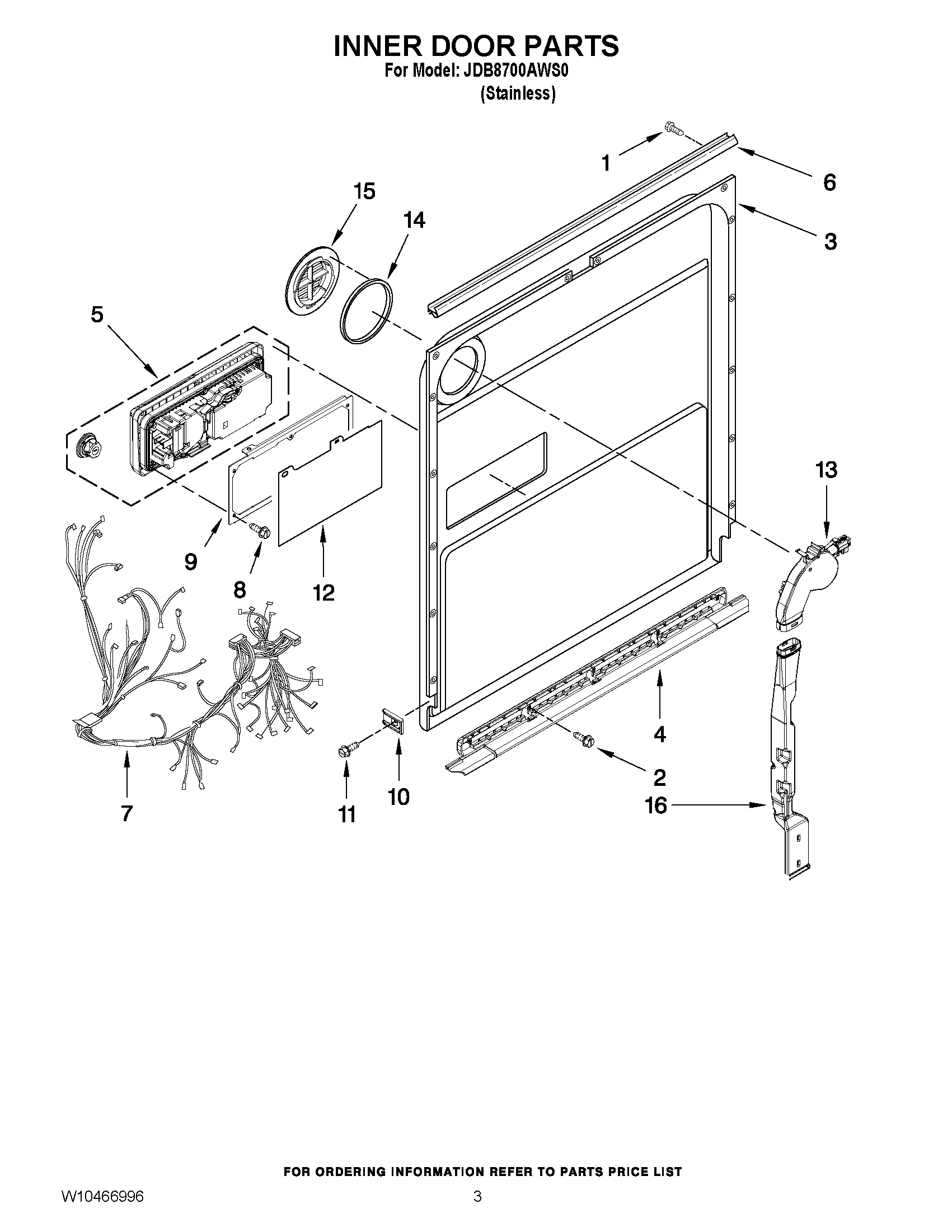

JDB8700AWS0 03 – INNER DOOR PARTS

Written by

Products

Position	Product
1	MAY W10309090
2	MAY 8281217
3	INNER DOOR & MASTIC ASSEMBLY
4	SEAL, DOOR BOTTOM
5	DISPENSER ASSEMBLY
6	MAY W10195007
7	MAY W10392487
8	MAY W10177098
9	BRACKET, DISPENSER
10	BARRIER, VAPOR DOOR
11	SCREW
12	MAY W10385977
13	MAY W10375833
14	MAY 8269259
15	DEFLECTOR, VENT (ALSO ORDER ITEM 6)
16	VENT
