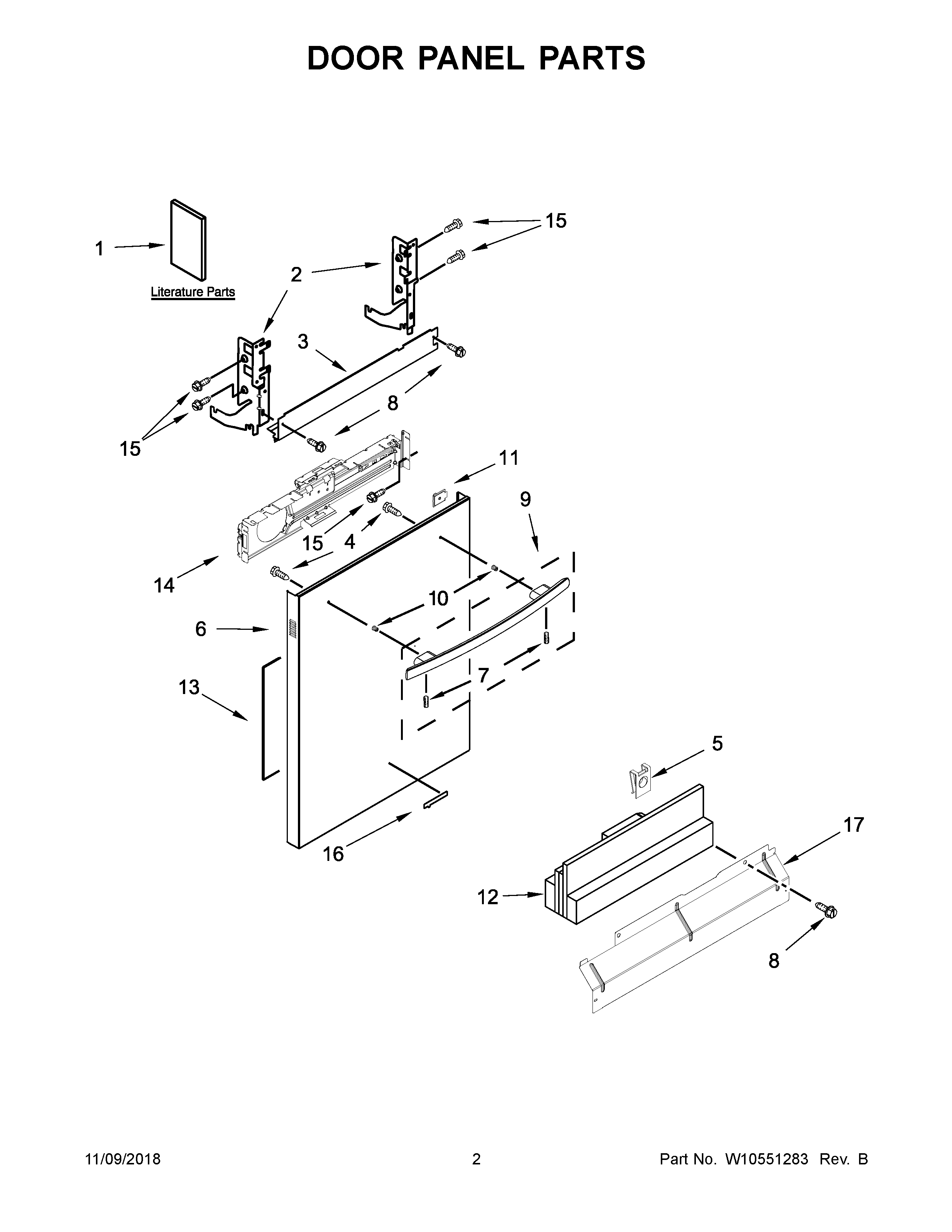

JDB8700AWS1 02 – DOOR PANEL PARTS

JDB8700AWS1 02 – DOOR PANEL PARTS

Written by

in

JDB8700AWS1 02 – DOOR PANEL PARTS

Products

PositionProduct
1AMAY W10638767
1CMAY W10543820
1BMAY W10596235
1DMAY W10543821
1MAY W10501738
2MAY 8534854
2AMAY 8534853
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5U-NUT
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8SCREW (BLACK)
9HANDLE ASSEMBLY (STAINLESS)
10STUD, MOUNTING
11LIGHT, PIPE
12INSULATION, FOUR LAYER
13INSULATION, FRONT PANEL
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17ACCESS PANEL (BLACK)
