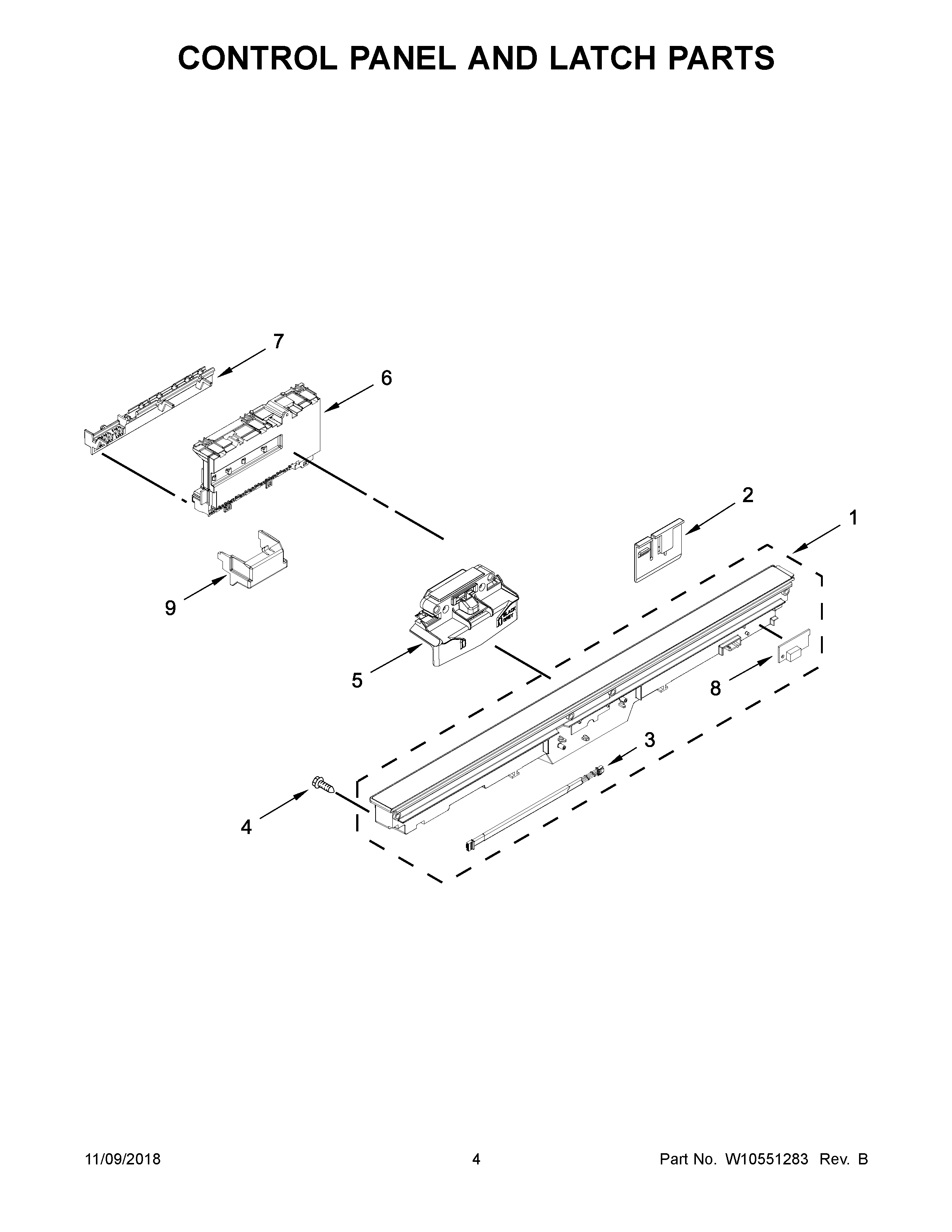

JDB8700AWS1 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
2	CLIP, CONTROL
3	MAY W10528492
4	SCREW
5	LATCH ASSEMBLY (INCLUDES SWITCH)
6	MAY W10481092
7	BRACE, CONNECTOR
8	LIGHT, STATUS
9	BOX, CONNECTOR
