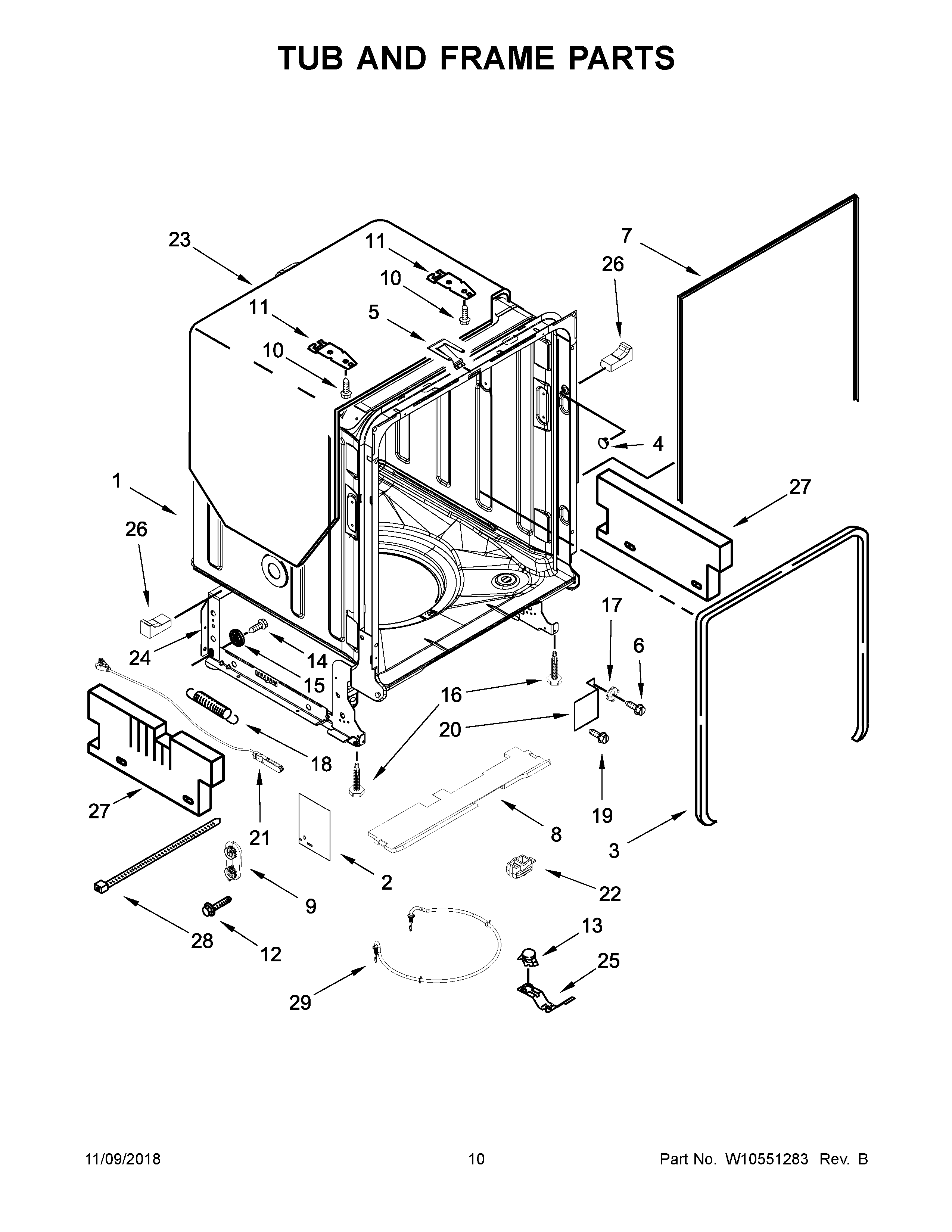

JDB8700AWS1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10511186
2	MAY W10609495
3	SEAL, DOOR
4	MAY W10082838
5	STRIKE, PLATE
6	MAY 3400014
7	SEAL, CABINET
8	SOUND INSULATION, BOTTOM
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	MAY W10195091
14	MAY W10348411
15	WHEEL, LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400892
20	MAY 8268991
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	SHIELD, TUB SOUND
24	SUPPORT ASSEMBLY, REAR
25	MAY W10300703
26A	SPACER, TUB/BRACE (RIGHT)
26	SPACER, TUB/BRACE (LEFT)
27	SIDE SHIELD (RIGHT AND LEFT)
28	MAY 8539404
29	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
