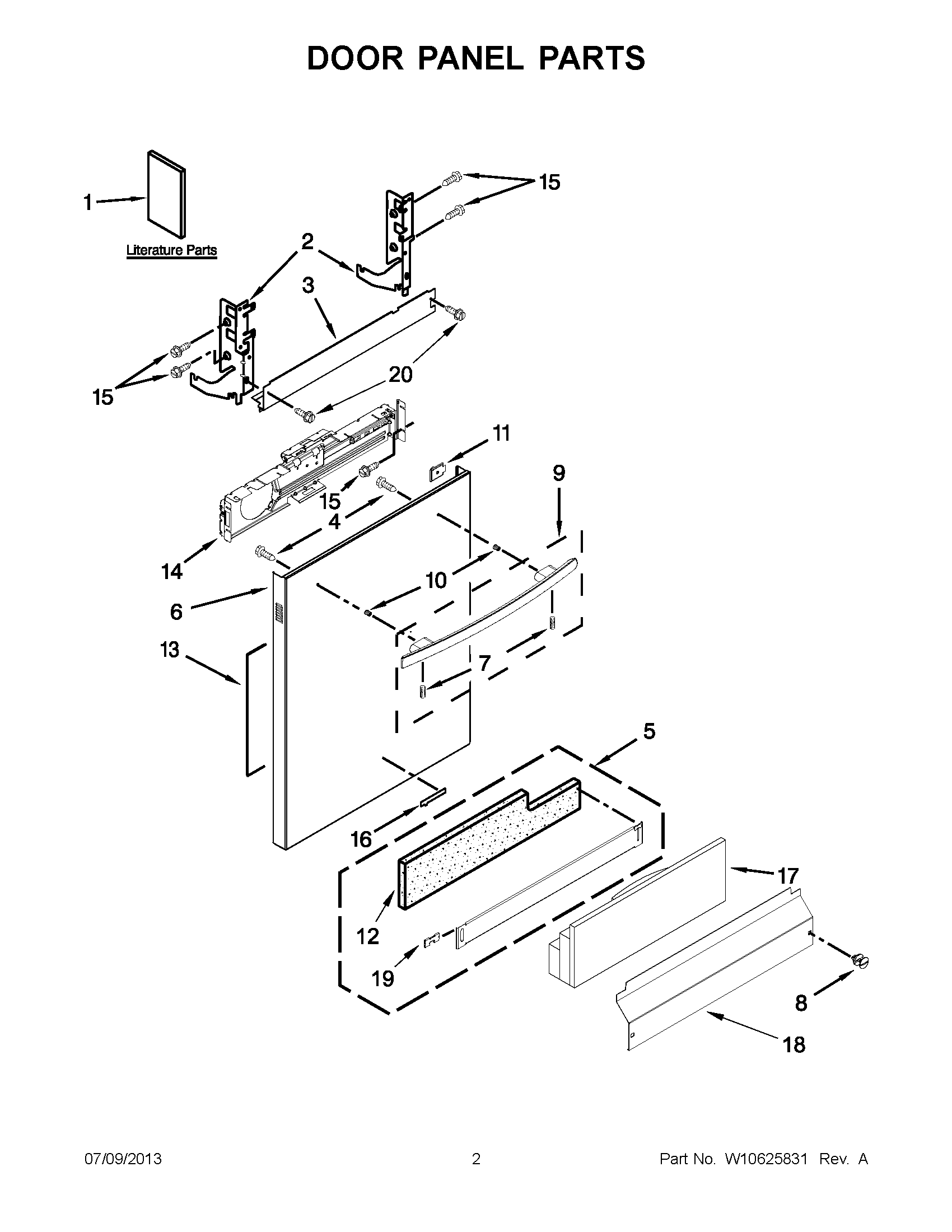

JDB8700AWS2 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10596235
1	MAY W10501738
1	MAY W10490712
1	MAY W10455258
1	MAY W10455257
2	MAY 8534853
2	MAY 8534854
3	MAY W10321447
4	MAY W10316572
5	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
6	PANEL, FRONT (STAINLESS)
7	MAY W10276608
8	SCREW (BLACK)
9	HANDLE ASSEMBLY (STAINLESS)
10	STUD, MOUNTING
11	LIGHT, PIPE
12	INSULATION, TOE PANEL
13	INSULATION, FRONT PANEL
14	MAY W10194911
15	SCREW
16	ASSEMBLY, BADGE (STAINLESS)
17	MAY W10350437
18	MAY W10195777
19	CLIP, GROUNDING
20	Screw
