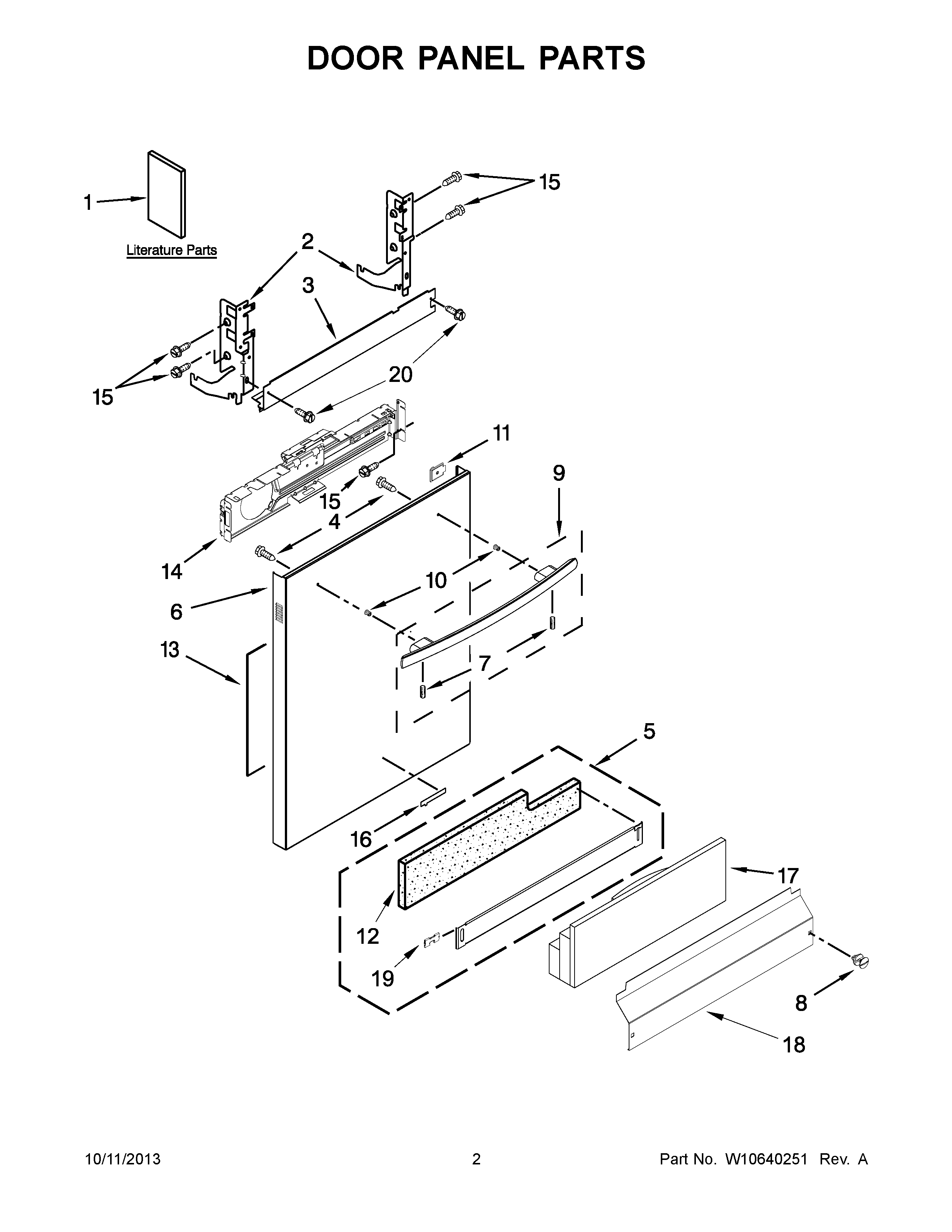

JDB8700AWS3 02 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10596235
1MAY W10501738
1MAY W10455258
1MAY W10638767
1MAY W10455257
2MAY 8534854
2MAY 8534853
3MAY W10321447
4MAY W10316572
5TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8SCREW (BLACK)
9HANDLE ASSEMBLY (STAINLESS)
10STUD, MOUNTING
11LIGHT, PIPE
12INSULATION, TOE PANEL
13INSULATION, FRONT PANEL
14MAY W10194911
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17MAY W10350437
18MAY W10195777
19CLIP, GROUNDING
20Screw
