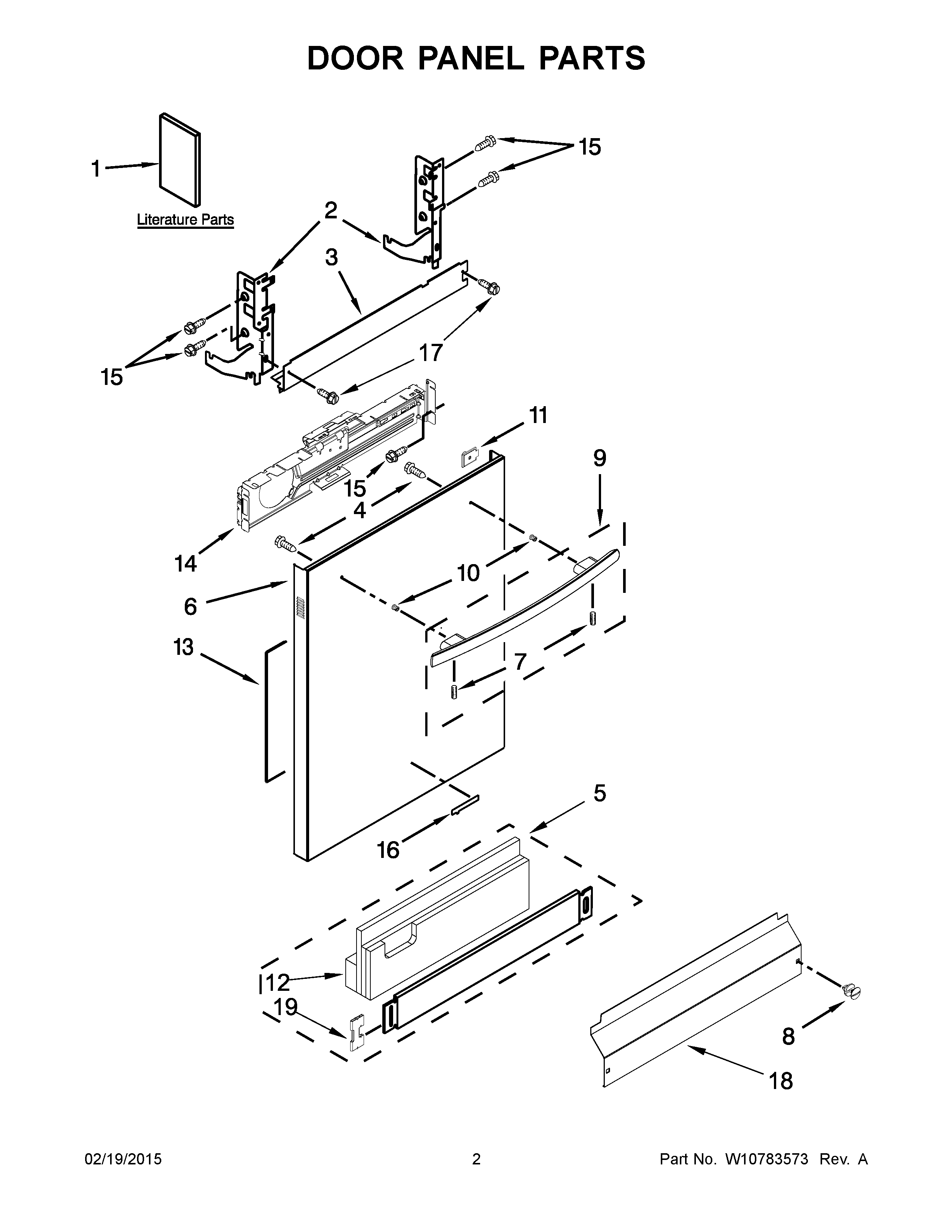

JDB8700AWS4 02 – DOOR PANEL PARTS

Products

PositionProduct
1DMAY W10543821
1CMAY W10543820
1MAY W10741197
1AMAY W10638767
1BMAY W10596235
2AMAY 8534853
2MAY 8534854
3MAY W10320859
4MAY W10316572
5MAY W10586590
6PANEL, FRONT (STAINLESS)
7MAY W10276608
8SCREW (BLACK)
9HANDLE ASSEMBLY (STAINLESS)
10STUD, MOUNTING
11LIGHT, PIPE
12MAY W10526105
13INSULATION, FRONT PANEL
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17Screw
18MAY W10195777
19CLIP, GROUNDING
