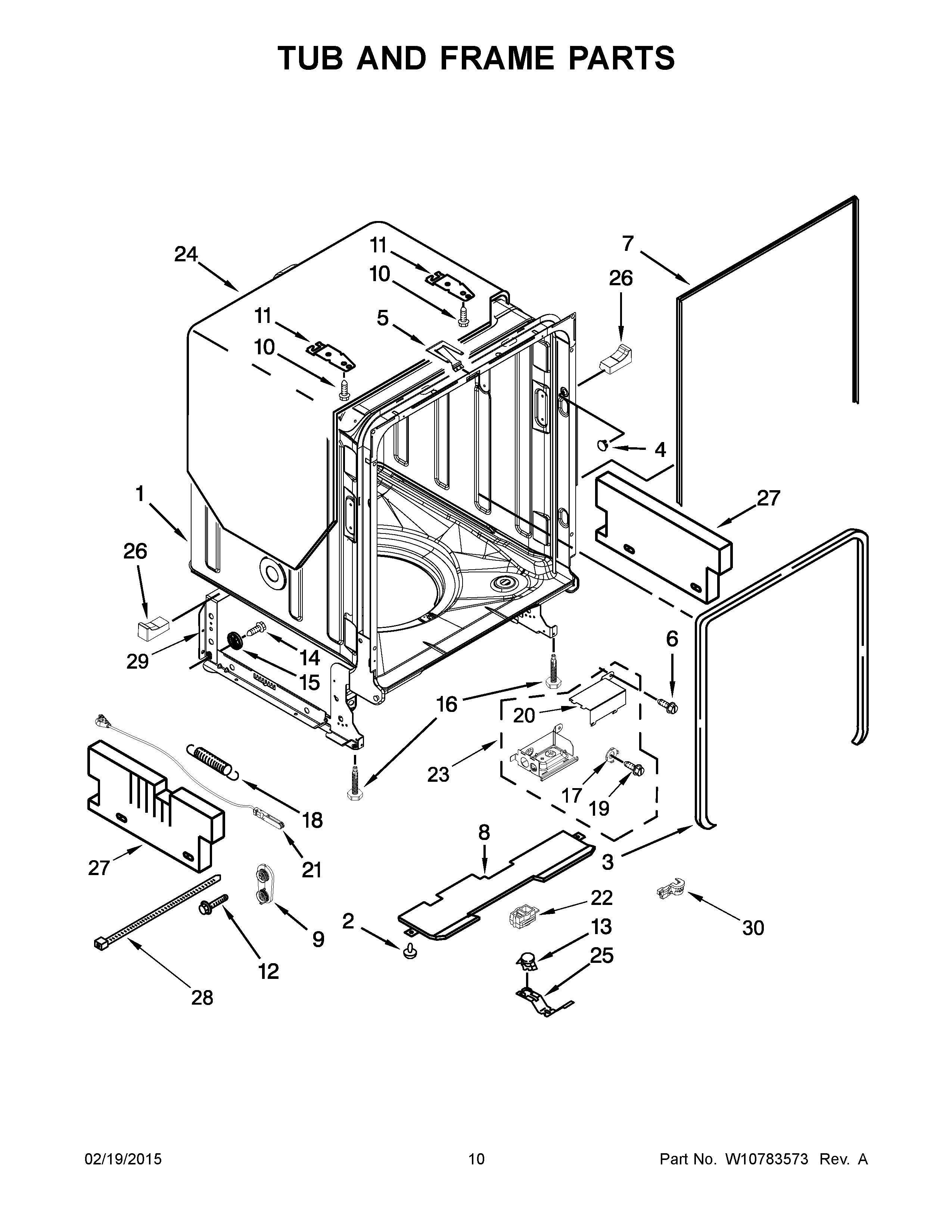

JDB8700AWS4 06 – TUB AND FRAME PARTS

JDB8700AWS4 06 – TUB AND FRAME PARTS

Written by

in

JDB8700AWS4 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681491
2MAY 3400924
3SEAL, DOOR
4MAY W10082838
5STRIKE, LATCH
6MAY 3400014
7SEAL, CABINET
8INSULATION BOTTOM
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13MAY W10195091
14MAY W10348411
15WHEEL LEG
16LEVELER, LEG
17WASHER, PRONGED CUP
18MAY 8270020
19Screw
20COVER, TERMINAL BOX
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23ASSEMBLY, TERMINAL BOX
24MAY 8573239
25MAY W10300703
26SPACER, TUB/BRACE (LEFT)
26ASPACER, TUB/BRACE (RIGHT)
27SIDE SHIELD (RIGHT AND LEFT)
28MAY 8539404
29SUPPORT ASSEMBLY, REAR
30MAY W10337661
