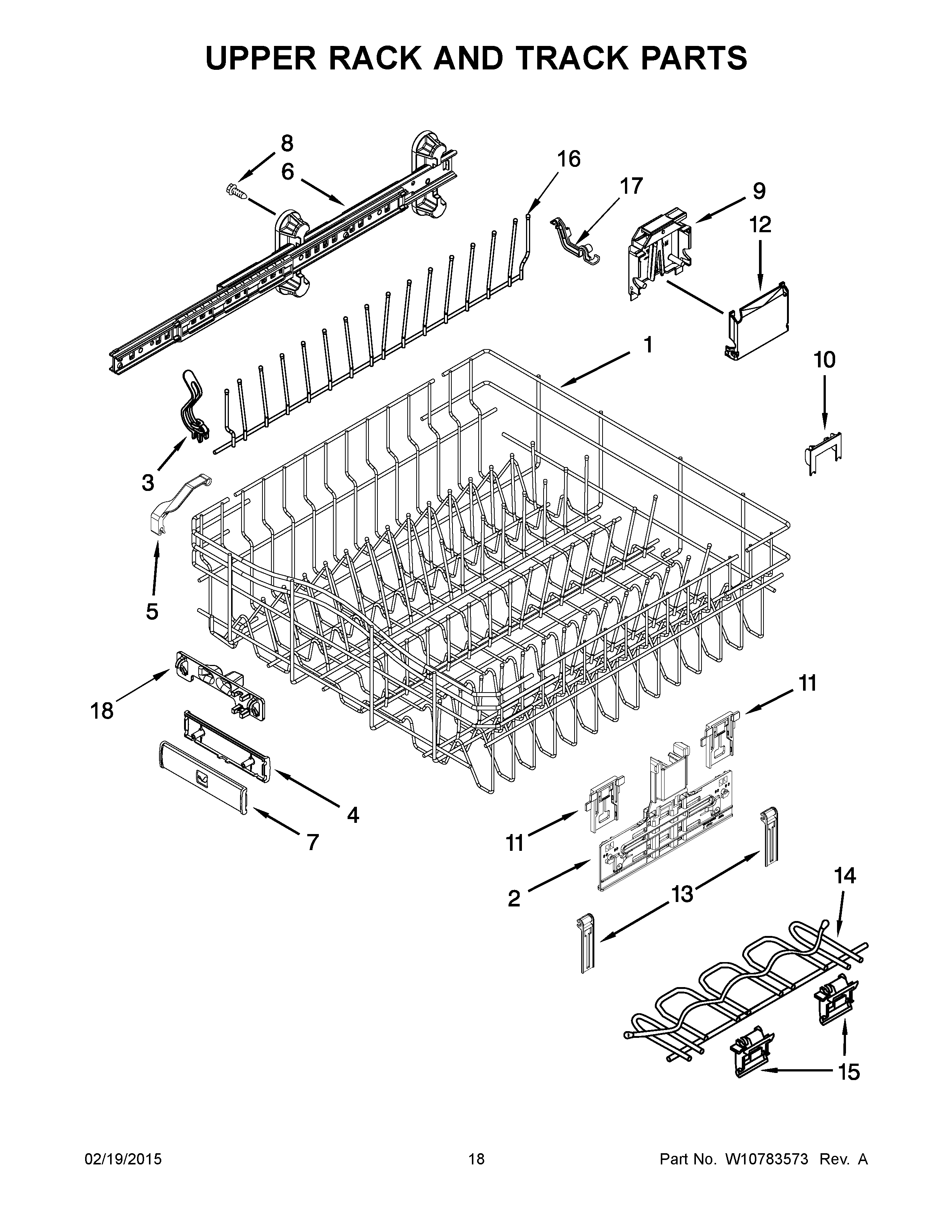

JDB8700AWS4 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, UPPER
2ADJUSTER ASSEMBLY
3CLIP, NO FLIP
4MAY W10587968
5CLIP, DISPENSER GUARD
6AMAY W10752595
6MAY W10752596
7MAY W10587967
8MAY W10309090
9HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
9AHOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
10CLIP-LOCK ADJUSTER ARM
11POSITIONER, ADJUSTER
12MAY W10250162
13MAY W10195839
14CUPSHELF
15CLIP, CUPSHELF
16TINE, FOLD DOWN
17MAY W10082853
18MAY 8539102
