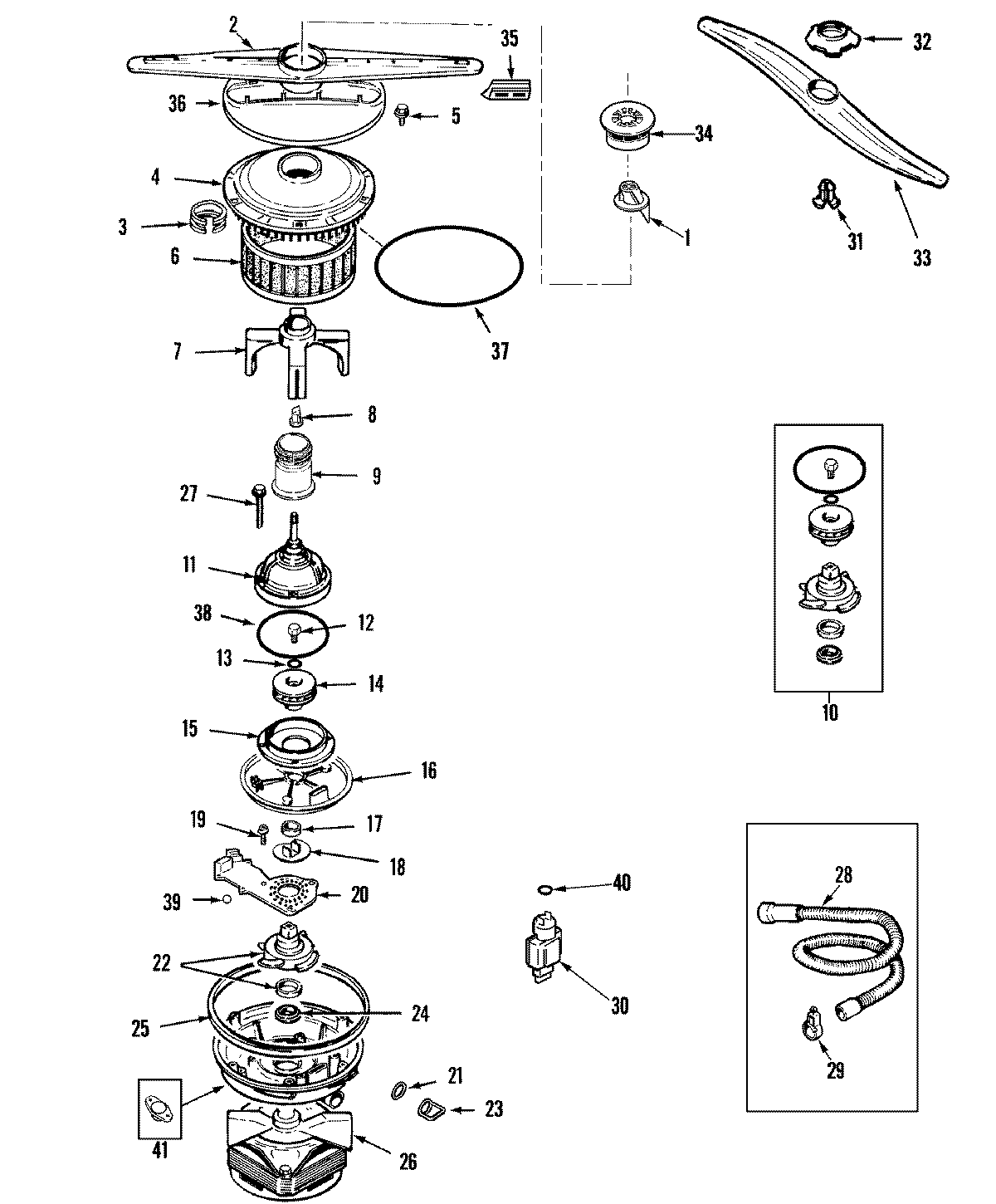

JDB8910AWS 05 – PUMP & MOTOR

Products

Position	Product
0	WP99001787 Whirlpool Dishwasher Tower
2	WP99001788 Whirlpool Dishwasher Spray Arm
3	MAY 912313
4	MAY 99001789
5	MAY 99001790
6	WP99001791 Whirlpool Dishwasher Pump Filter
7	MAY 99002043
8	MAY 99001426
10	MAY 99002103
11	MAY 99002461
12	MAY 910654
13	WP910934 Whirlpool Dishwasher O-Ring
14	WP99002069 Whirlpool Dishwasher Impeller
15	MAY 99002279
15	MAY 99001793
16	MAY 99001794
16	MAY 99002280
17	MAY 912510
18	MAY 912310
19	61002031 Whirlpool Air Conditioner Handle Screw
20	MAY 99001795
21	MAY 99001799
22	MAY 903304
23	MAY 99001800
24	MAY 902882
25	MAY 912529
26	MAY 99002482
27	MAY 912383
28	MAY 99002175
29	WP616099 Whirlpool Clamp
30	MAY 99002071
31	MAY Y912681
32	WP912680 Whirlpool Dishwasher Outlet
33	MAY 99002061
34	WP99001428 Whirlpool Dishwasher Nut
35	MAY Y912895
36	WP99001796 Whirlpool Dishwasher Guard
37	MAY 99001797
38	MAY 99001326
39	MAY 99001798
39	MAY 99002281
40	MAY 99002123
41	MAY 99002070
41	SCREW, No.8X1/2 HEX WASHER HEAD
41	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
41	MAY 99001980
42	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
42	MAY 99002104
