JDB9000CWB1 05 – FILL, DRAIN AND OVERFILL PARTS

JDB9000CWB1 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

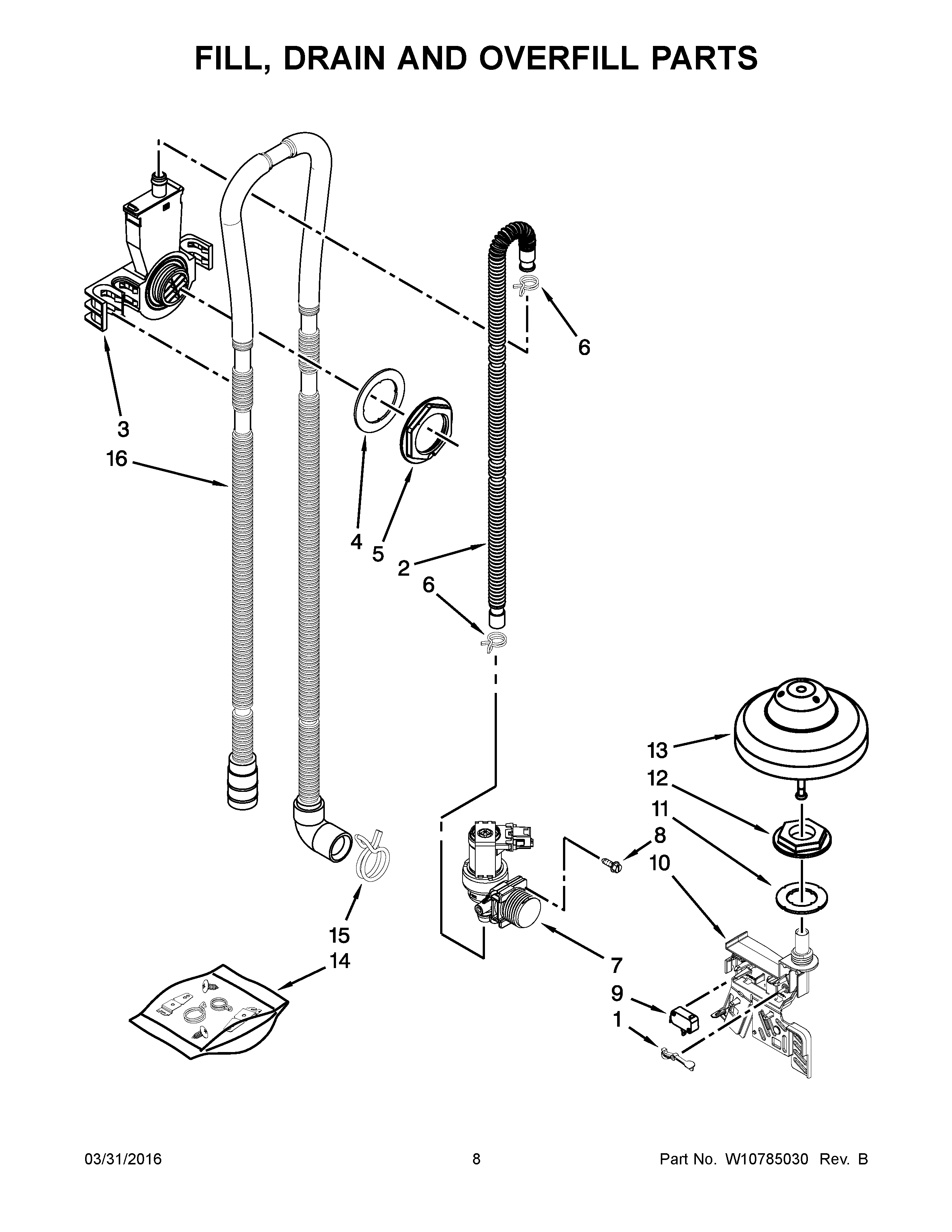

JDB9000CWB1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2HOSE
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7FILL VALVE ASSEMBLY
8SCREW
9SWITCH, OVERFILL CONTROL
10HOUSING, OVERFILL (ALSO ORDER ITEM 11)
11MAY 8531743
12MAY W10195038
13MAY W10195036
14MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
15MAY 370445
16DRAIN LOOP WITH CHECK VALVE ASSEMBLY
