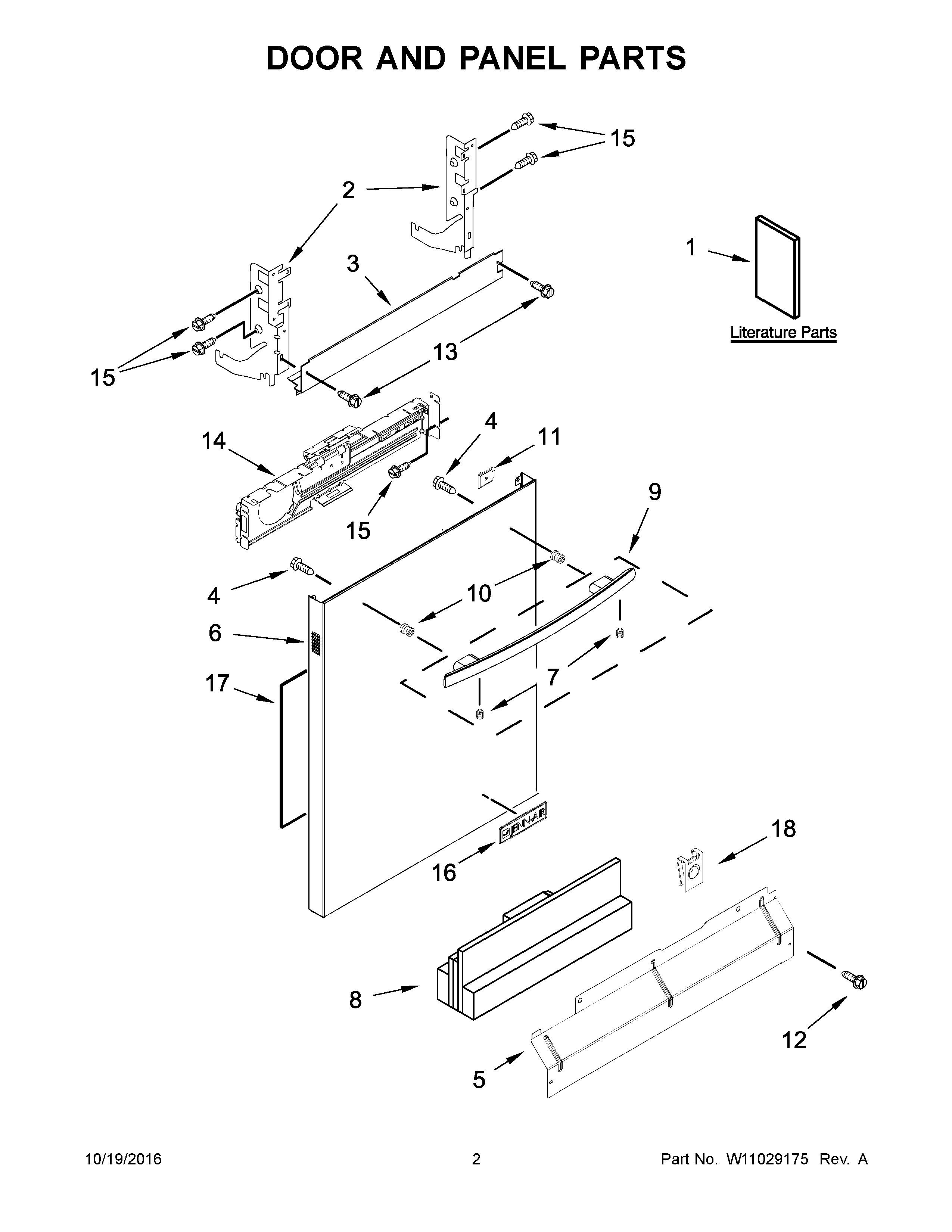

JDB9000CWB3 02 – DOOR AND PANEL PARTS

JDB9000CWB3 02 – DOOR AND PANEL PARTS

Written by

in

JDB9000CWB3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10880571
1MAY W10741197
1AMAY W10810670
1BMAY W10665639
1CMAY W10880570
2MAY 8534854
2AMAY 8534853
3BARRIER, VAPOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6AMAY W10665707
6MAY W10665708
7MAY W10276608
8MAY W10526105
9MAY W10709336
9AMAY W10786149
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16AASSEMBLY, BADGE (STAINLESS)
16ASSEMBLY, BADGE (BLACK)
17MAY W10073520
18U-NUT
