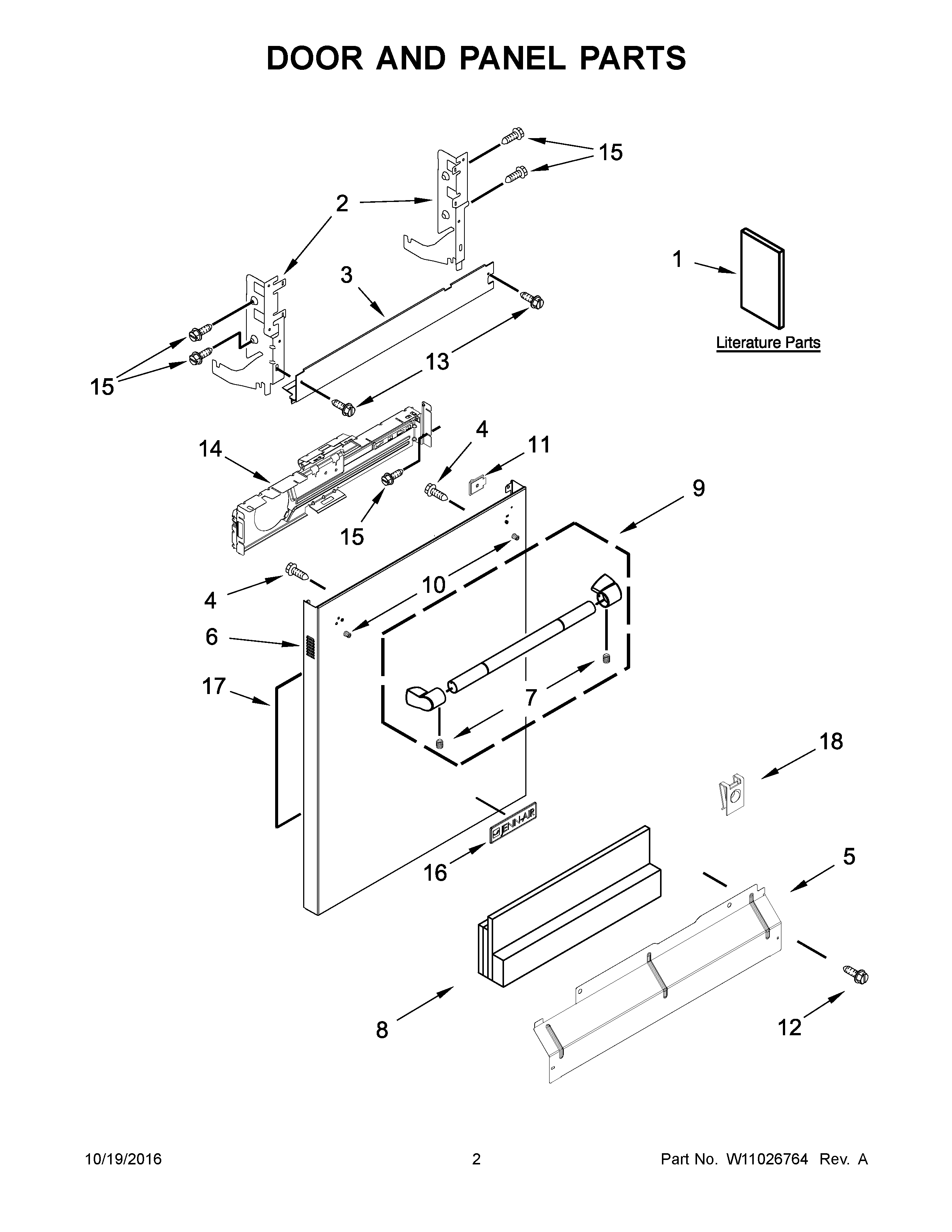

JDB9000CWP3 02 – DOOR AND PANEL PARTS

JDB9000CWP3 02 – DOOR AND PANEL PARTS

Written by

in

JDB9000CWP3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10741197
1BMAY W10665639
1AMAY W10810670
1CMAY W10880570
1DMAY W10880571
2MAY 8534854
2AMAY 8534853
3BARRIER, VAPOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6MAY W10665722
7SCREW, SET
8MAY W10526105
9MAY W10786143
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16NAMEPLATE (STAINLESS)
17MAY W10073520
18U-NUT
