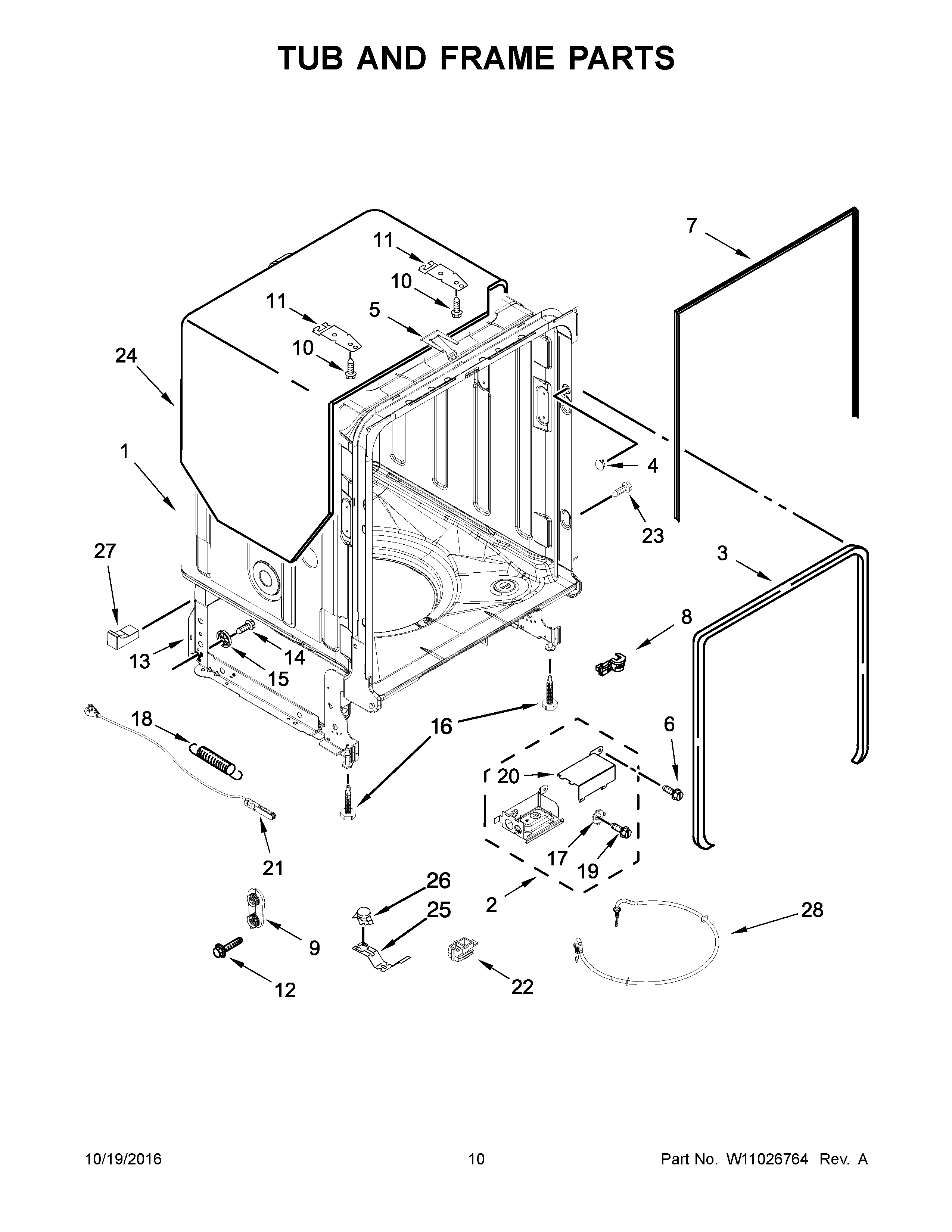

JDB9000CWP3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	ASSEMBLY, TERMINAL BOX
3	SEAL, DOOR
4	PLUG, TUB
5	STRIKE, LATCH
6	Screw
7	SEAL, CABINET
8	MAY W10337661
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	SUPPORT ASSEMBLY, REAR
14	MAY W10348411
15	WHEEL LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400014
20	COVER, TERMINAL BOX
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	MAY W10309090
24	MAY W10866978
25	MAY W10300703
26	MAY W10195091
27A	SPACER, TUB/BRACE (RIGHT)
27	SPACER, TUB/BRACE (LEFT)
28	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
