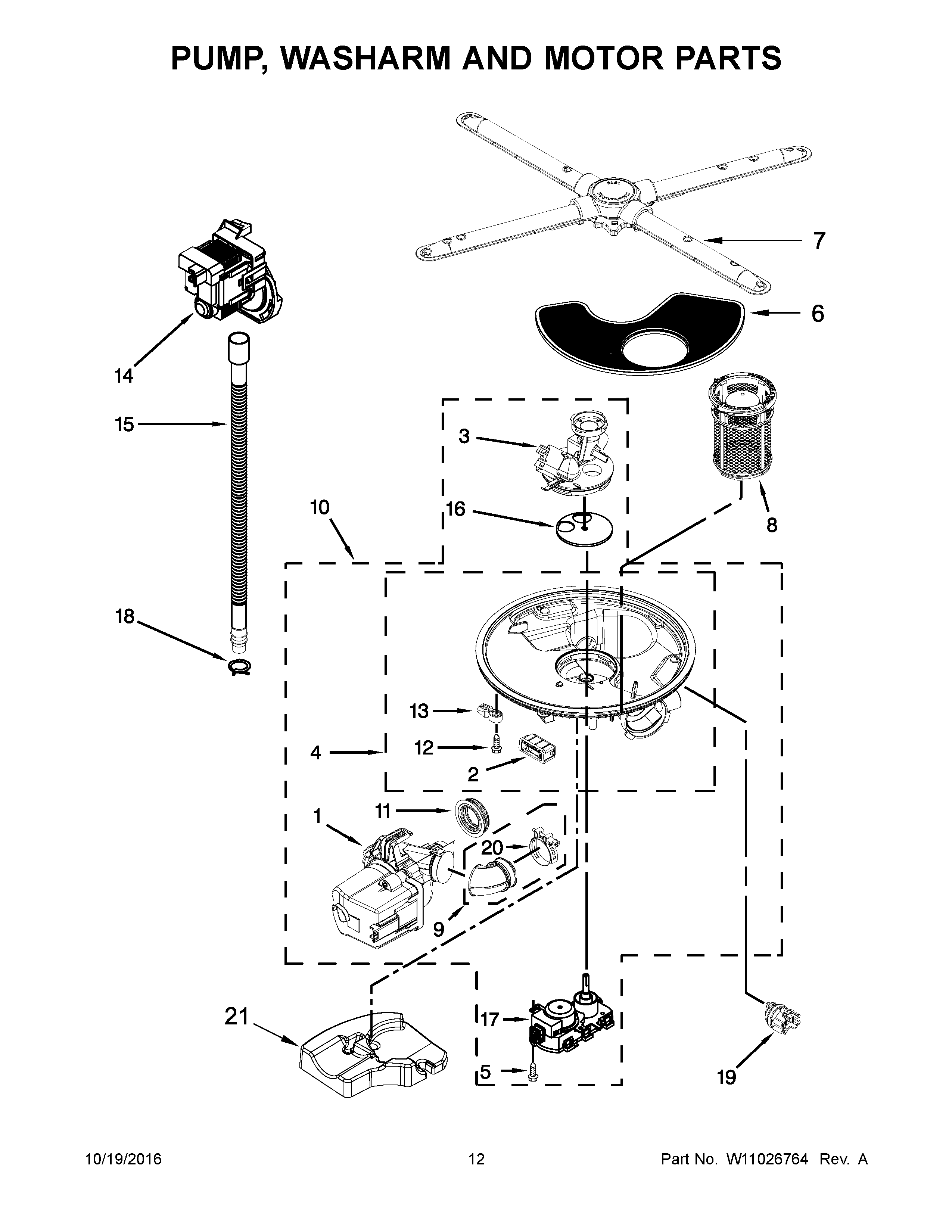

JDB9000CWP3 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	MOTOR (ALSO ORDER ITEMS 9 & 11)
2	MOTOR, ISOLATOR
3	COVER, OUTLET
4	SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5	MAY 9741232
6	SCREEN
7	SPRAYARM ASSEMBLY, LOWER
8	FILTER CUP ASSEMBLY
9	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
10	MAY W10605057
11	GROMMET
12	MAY W10348407
13	TAB, SUMP
14	MAY W10724439
15	MAY 8269144
16	DISC, DIVERTER
17	MOTOR, DIVERTER
18	HOSE CLAMP
19	INDICATOR, OPTICAL WASH
20	CLAMP, HOSE
21	DAMPER, SUMP ASSEMBLY
