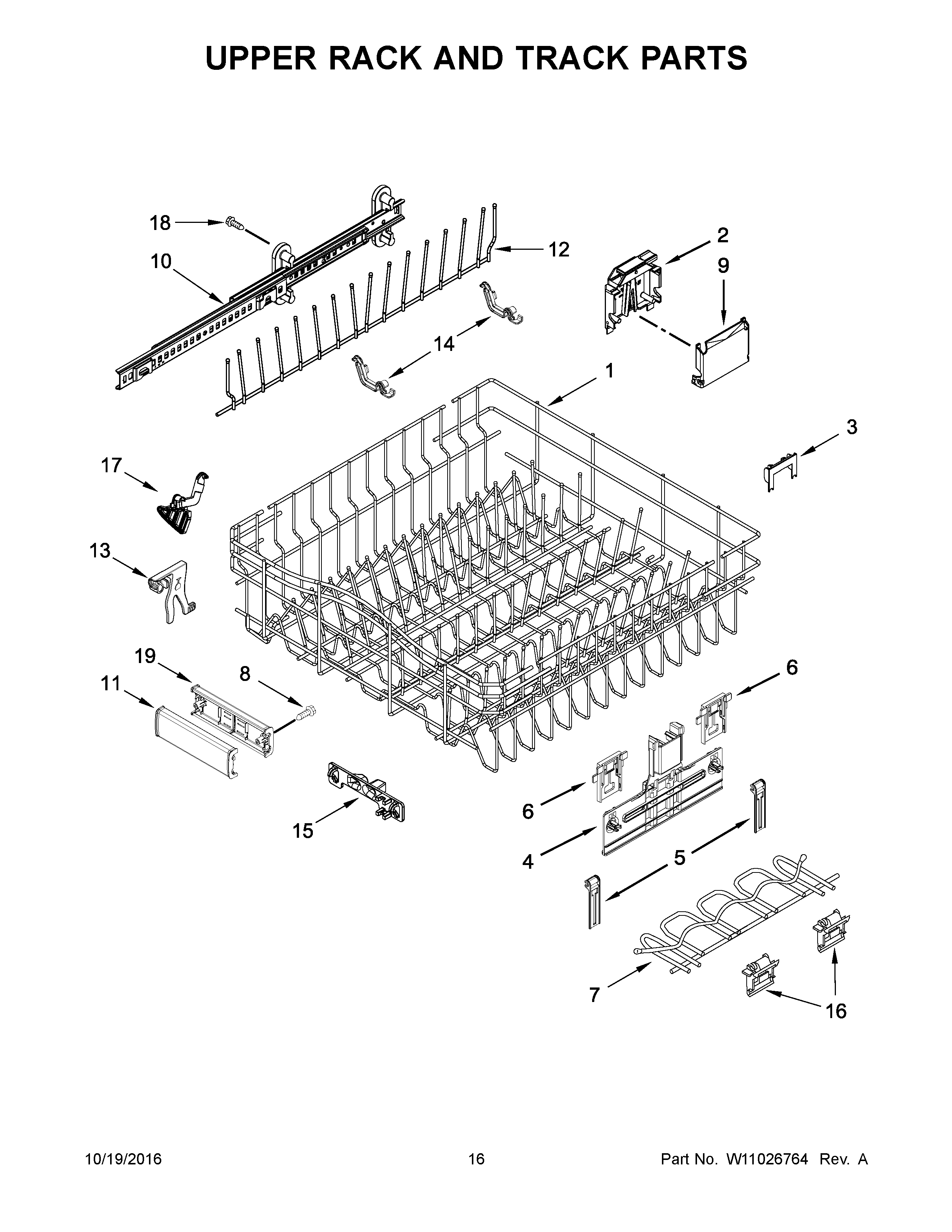

JDB9000CWP3 09 – UPPER RACK AND TRACK PARTSadmin2025-04-26T09:45:00+00:00JDB9000CWP3 09 – UPPER RACK AND TRACK PARTS
Products
| Position | Product |
|---|
| 1 | DISHRACK, UPPER |
| 2 | HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND) |
| 2A | HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND) |
| 3 | CLIP-LOCK ADJUSTER ARM |
| 4 | ADJUSTER ASSEMBLY |
| 5 | MAY W10195839 |
| 6 | POSITIONER, ADJUSTER |
| 7 | CUPSHELF |
| 8 | MAY 9741232 |
| 9 | MAY W10250162 |
| 10A | MAY W10781305 |
| 10 | MAY W10781301 |
| 11 | HANDLE, DISHRACK FRONT |
| 12 | TINE, FOLD DOWN |
| 13 | CLIP, STEMWARE |
| 14 | MAY W10082853 |
| 15 | MAY 8539102 |
| 16 | CLIP, CUPSHELF |
| 17 | CLIP, DISPENSER GUARD |
| 18 | MAY W10309090 |
| 19 | HANDLE, DISHRACK REAR |
