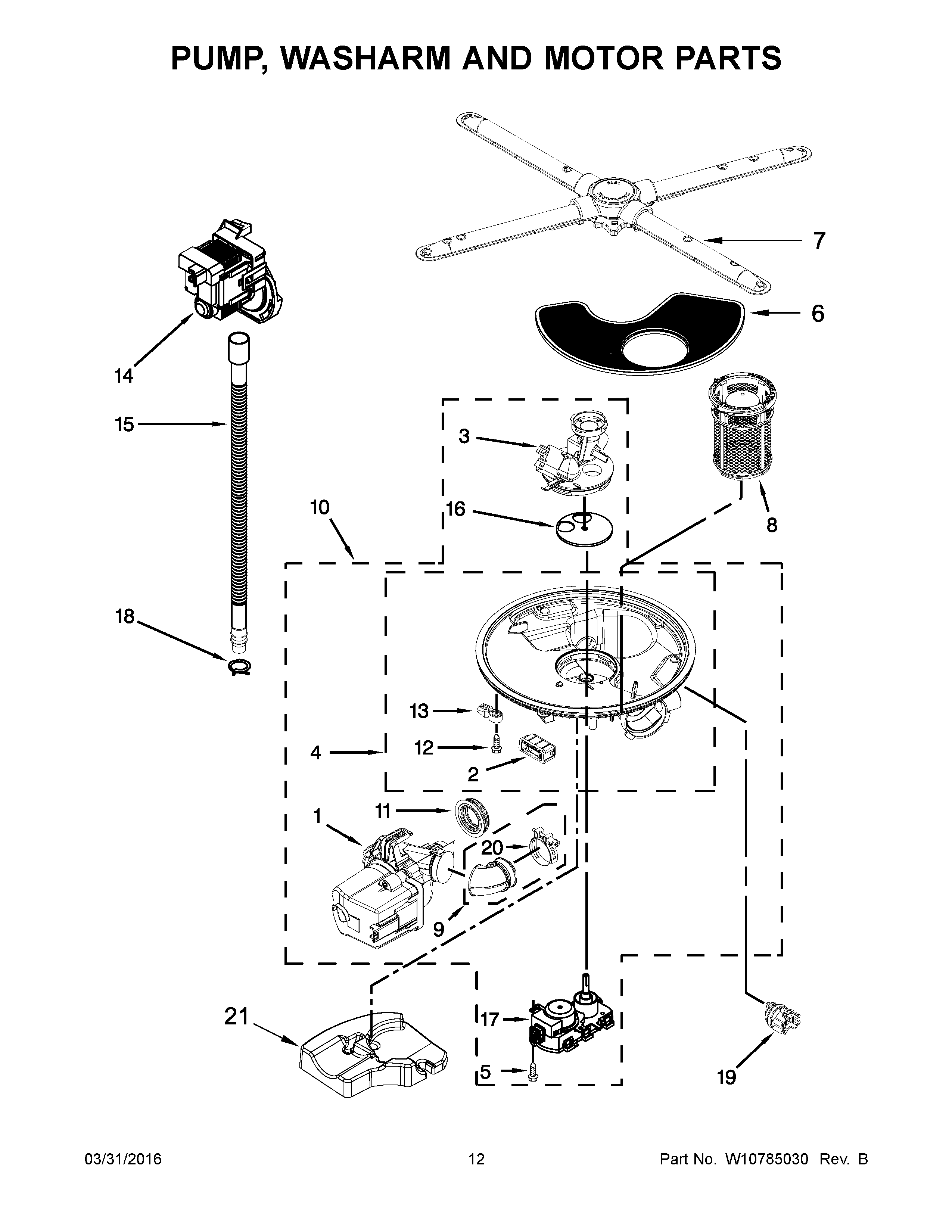

JDB9000CWS1 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1MAY W10816492
2MOTOR, ISOLATOR
3COVER, OUTLET
4SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5MAY 9741232
6SCREEN
7SPRAYARM ASSEMBLY, LOWER
8FILTER CUP ASSEMBLY
9HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
10MAY W10605057
11GROMMET
12MAY W10348407
13TAB, SUMP
14MAY W10348269
15MAY 8269144
16DISC, DIVERTER
17MAY W10476222
18HOSE CLAMP
19MAY W10705575
21DAMPER, SUMP ASSEMBLY
22SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
