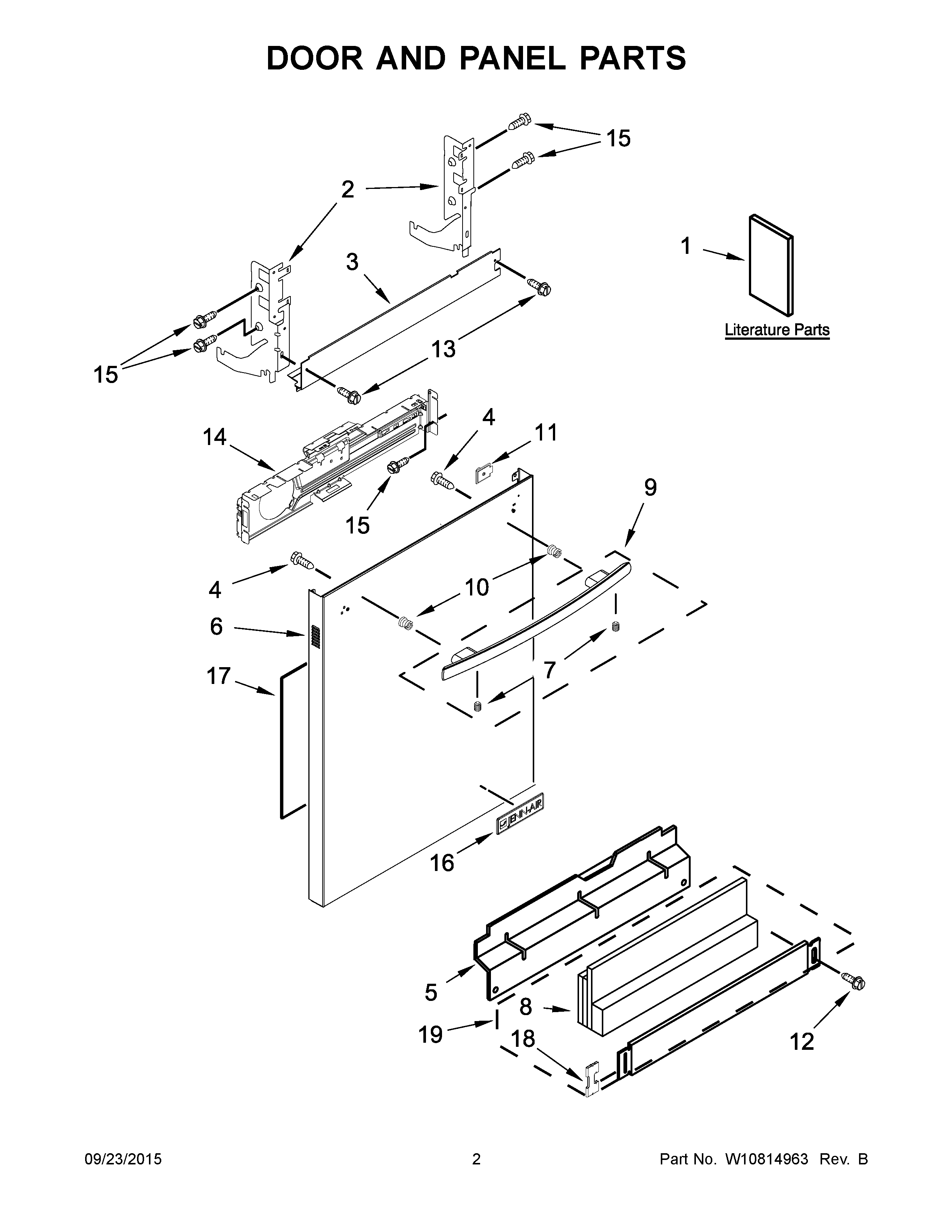

JDB9000CWS2 02 – DOOR AND PANEL PARTS

JDB9000CWS2 02 – DOOR AND PANEL PARTS

Written by

in

JDB9000CWS2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CMAY W10750905
1BMAY W10665639
1AMAY W10665625
1MAY W10741197
1DMAY W10750906
2AMAY 8534853
2MAY 8534854
3MAY W10726645
4MAY W10316572
5MAY W10195777
6AMAY W10665707
6MAY W10665708
7MAY W10276608
8MAY W10526105
9MAY W10709336
9AMAY W10709335
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16AASSEMBLY, BADGE (STAINLESS)
16ASSEMBLY, BADGE (BLACK)
17MAY W10073520
18CLIP, GROUNDING
19MAY W10586590
