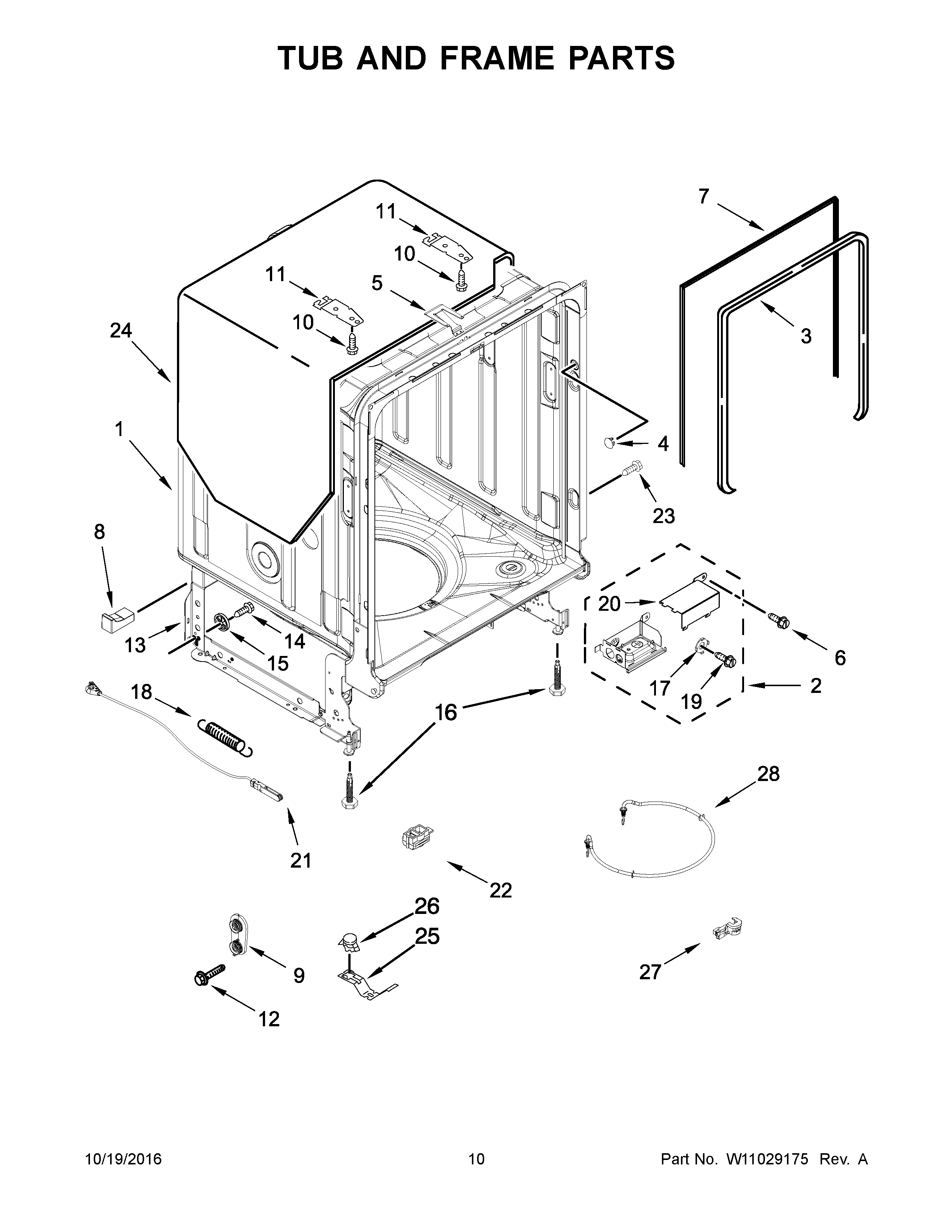

JDB9000CWS3 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681492
2ASSEMBLY, TERMINAL BOX
3SEAL, DOOR
4PLUG, TUB
5STRIKE, LATCH
6Screw
7SEAL, CABINET
8SPACER, TUB/BRACE (LEFT)
8ASPACER, TUB/BRACE (RIGHT)
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13SUPPORT ASSEMBLY, REAR
14MAY W10348411
15WHEEL LEG
16LEVELER, LEG
17WASHER, PRONGED CUP
18MAY 8270020
19MAY 3400014
20COVER, TERMINAL BOX
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23MAY W10309090
24MAY W10866978
25MAY W10300703
26MAY W10195091
27MAY W10337661
28HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
