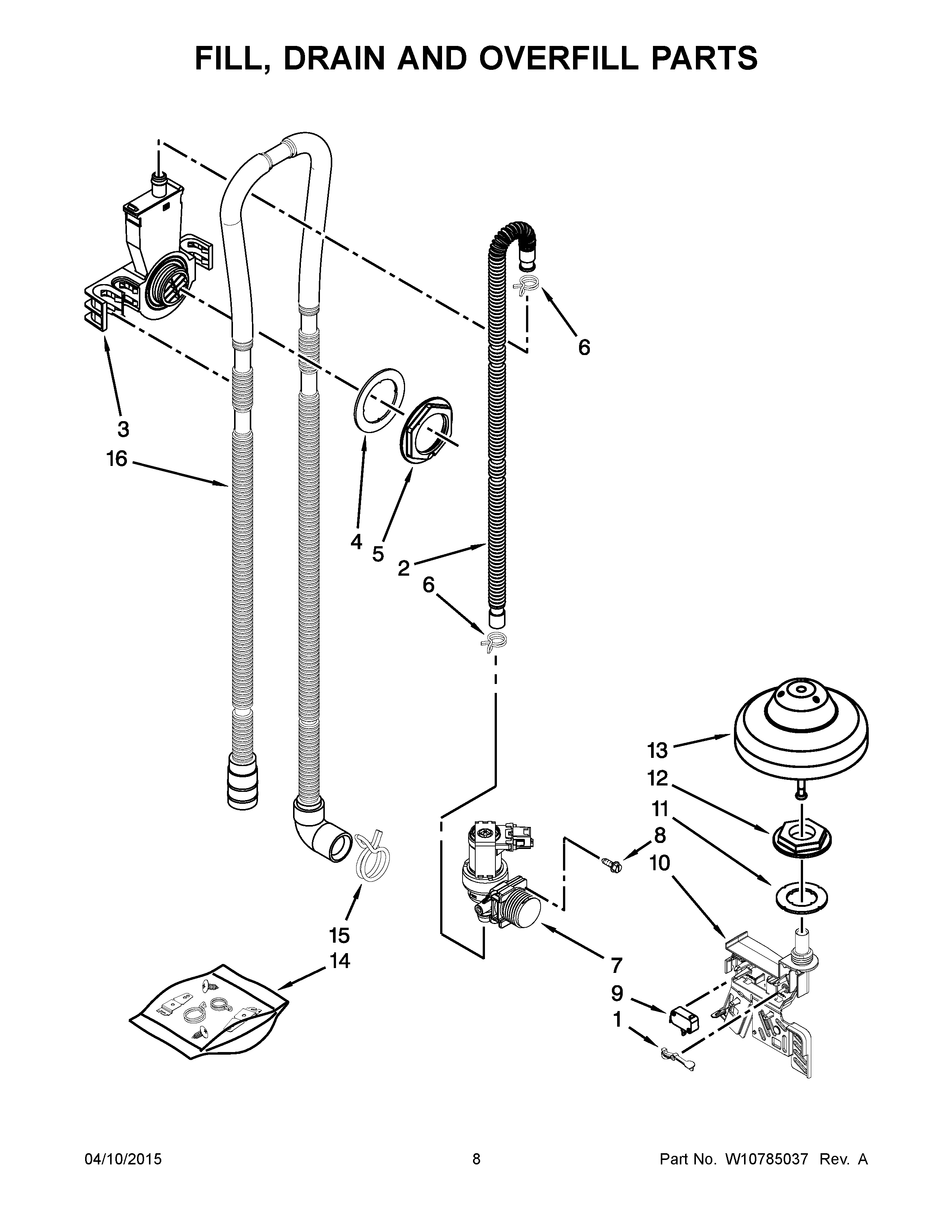

JDB9200CWP1 05 – FILL, DRAIN AND OVERFILL PARTS

JDB9200CWP1 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

JDB9200CWP1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7FILL VALVE ASSEMBLY
8SCREW
9MAY W10195039
10HOUSING, OVERFILL (ALSO ORDER ITEM 11)
11MAY 8531743
12MAY W10195038
13MAY W10195036
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
15MAY 370445
16DRAIN LOOP WITH CHECK VALVE ASSEMBLY
