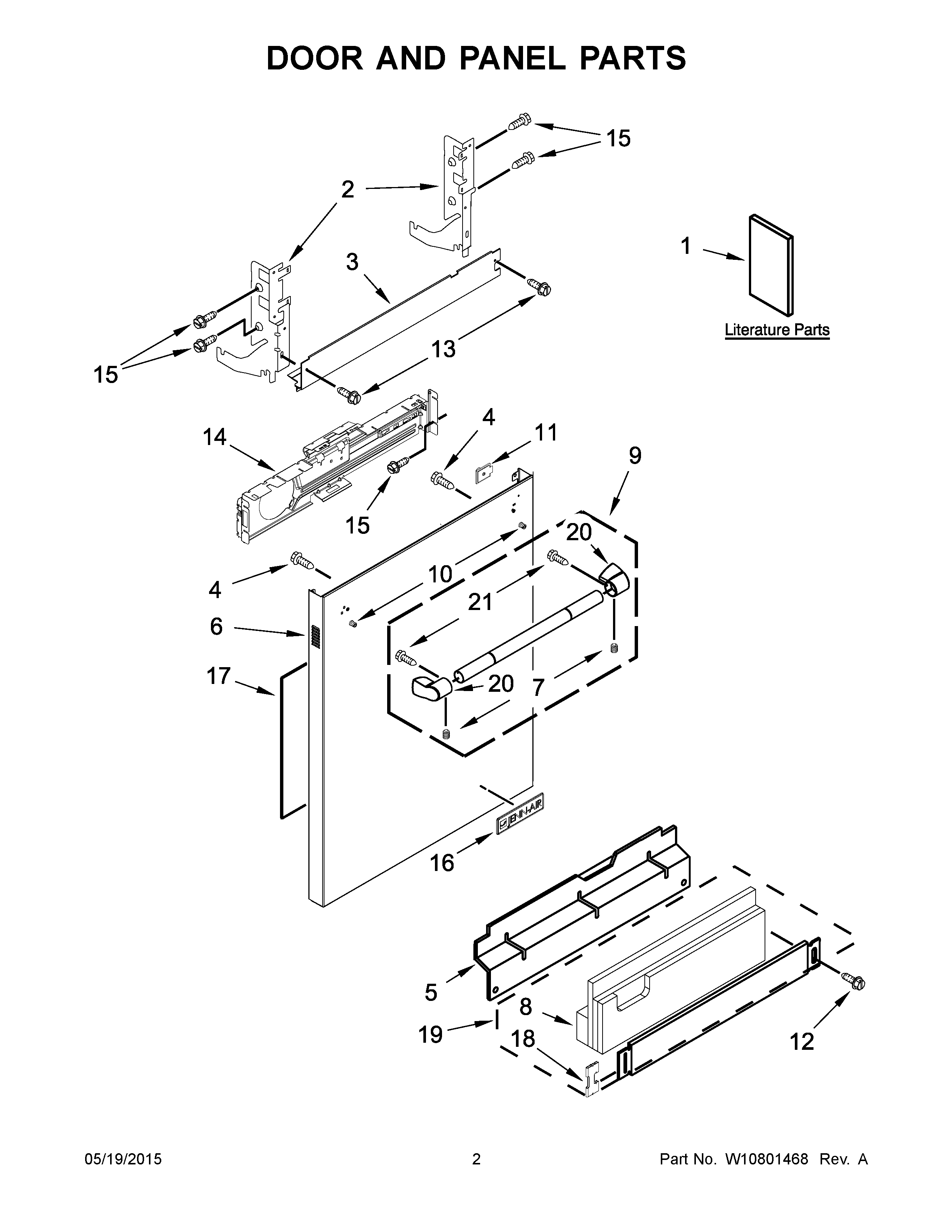

JDB9200CWP2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10741197
1A	MAY W10665625
1B	MAY W10665639
1C	MAY W10750900
1D	MAY W10754472
2	MAY 8534854
2A	MAY 8534853
3	MAY W10321448
4	MAY W10316572
5	MAY W10195777
6	MAY W10665722
7	SCREW, SET
8	INSULATION, ACCESS PANEL
9	MAY W10709337
10	STUD, MOUNTING
11	LIGHT, PIPE
12	SCREW (BLACK)
13	Screw
14	BRACKET, CONTROL
15	SCREW
16	NAMEPLATE (STAINLESS)
17	MAY W10073520
18	CLIP, GROUNDING
19	TOE PANEL (INCLUDES ITEM 9) (BLACK)
20A	MAY W10194837
20	MAY W10194838
21	MAY M0207303
